13166892 Wika 13166892 General Purpose Pressure Transmitter Model S-10 4-20MA, 2-wire G1/4A X DIN Stainless Steel13166892 Wika 13166892 General Purpose Pressure Transmitter Model S-10 4-20MA, 2-wire G1/4A X DIN Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

13166892

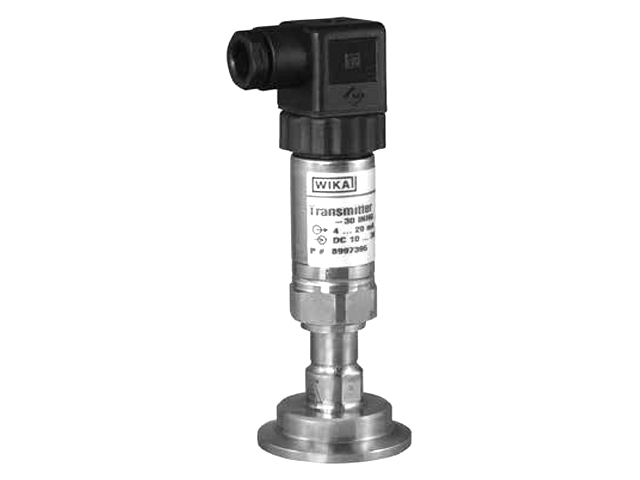

Wika 13166892 General Purpose Pressure Transmitter Model S-10 4-20MA, 2-wire G1/4A X DIN Stainless Steel

General Purpose Pressure Transmitter

Manufacturer Wika
Part Number 13166892
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $864.07
Qty:

Description:
Wika Model S-10 pressure transmitter for general industrial applications is the ideal solution for customers with demanding measuring requirements. It features a very good accuracy, a robust design and an exceptional number of variants, meaning it can be suited to the widest range of applications. The robust design turns the model S-10 into a very high quality product, which even the most adverse environmental conditions cannot affect. Whether with the lowest temperatures when used outdoors, with extreme shock and vibration in machine building or with aggressive media in the chemical industry, this transmitter can meet all requirements.
Email this page to a friend


Product Attributes


UOM:
EA
Process Connection:
G1/4A
Electrical Connection:
DIN
Range:
250 BAR
Transmitter Output:
4-20MA, 2-wire
Supply Voltage:
10-30 VDC
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
S-10
Accuracy:
±0.5% of span
Wetted Parts:
Stainless Steel
Non-linearity:
≤ ± 0.2 % of span BFSL
Manufacturer:
Wika
Application:
Machine building, hydraulics and pneumatics pumps and chemical industry.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
