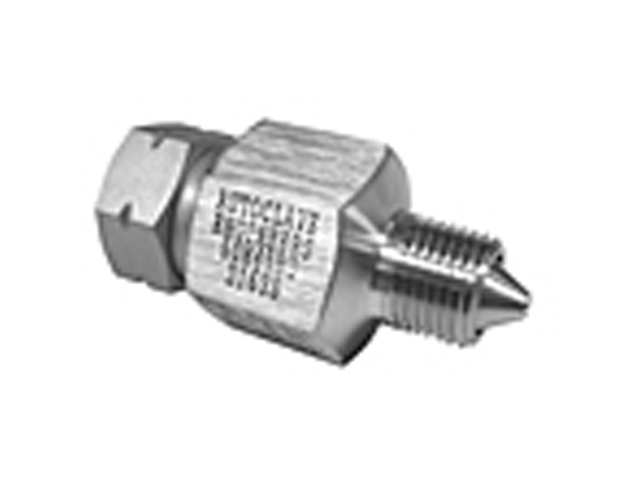

15M126QQ Autoclave Engineers QS Series - Male / Female Adapter - QSS to QSS15M126QQ Autoclave Engineers QS Series - Male / Female Adapter - QSS to QSS
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

15M126QQ

Autoclave Engineers QS Series - Male / Female Adapter - QSS to QSS

Parker Autoclave Engineers QS Series - Male / Female Adapter - QSS to QSS

Manufacturer Parker
Part Number 15M126QQ
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers male /female adapters are designed to adapt a female connection to another size and/or type of connection without the need for additional couplings. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechanical strength of the adapter. Materials: Coldworked Type 316 stainless steel. Special material couplings may be supplied with four flats in place of standard hex. Note: NPT (Pipe) connections •NPT threads must be sealed using a high quality PTFE tape and/or PTFE paste product. Refer to thread sealant manufacturer’s instructions on how to apply thread sealant. •Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant. •Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts. Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Email this page to a friend


Product Attributes


UOM:
EA
Male End:
QS750
Female End:
QS375
Hex Size:
1.50 Inch (38.1mm)
Length:
2.53 Inch (64.1mm)
Material:
316 Stainless steel
Trade Name:
Slimline
Pressure Range:
Medium pressure
Configuration Type:
Adapter - male / female
Configuration Sub-Type:
Qss to QSS
Inch/Metric:
Inch
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Application:
In the key markets of chemical & petrochemical, research, oil & gas industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
