15MFAP6J6 Autoclave Engineers Male / Female JIC Adapter - National Pipe Thread (NPT) to JIC15MFAP6J6 Autoclave Engineers Male / Female JIC Adapter - National Pipe Thread (NPT) to JIC
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

15MFAP6J6

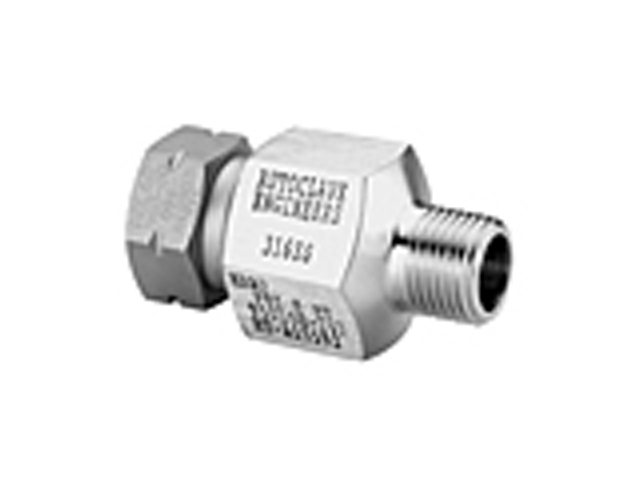

Autoclave Engineers Male / Female JIC Adapter - National Pipe Thread (NPT) to JIC

Parker Autoclave Engineers Male / Female JIC Adapter - National Pipe Thread (NPT) to JIC

Manufacturer Parker
Part Number 15MFAP6J6
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers male/female adapters are designed to join a female 37º flare (JIC) connection directly to another size and/or type of connection without the need for an additional coupling. In selecting an adapter involving two different sized connections, the larger connection should be on the male end where it is possible to maximize the mechanical strength of the adapter. Materials: Coldworked Type 316 stainless steel. Special material one piece adapters may be supplied with four flats in place of standard hex. Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Email this page to a friend


Product Attributes


UOM:
EA
Connection A:
3/8 Inch NPT
Connection B:
3/8 Inch JIC
Hex Size:
0.81 Inch (20.6mm)
Length:
1.50 Inch (38.1mm)
Material:
316 Stainless steel
Trade Name:
Slimline
Pressure Range:
Medium pressure
Configuration Type:
Adapter - male / female
Configuration Sub-Type:
NPT to JIC
Inch/Metric:
Inch
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Application:
In the key markets of chemical & petrochemical, research, oil & gas industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: 15MFAP6J6
