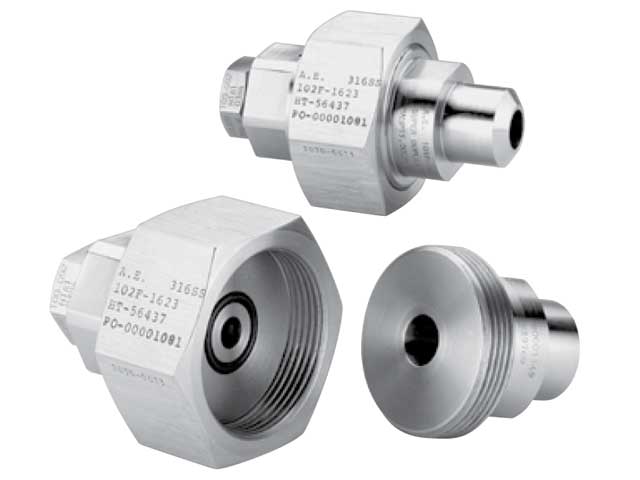

20EZMAH4H6 Autoclave Engineers Male / Male EZ-Union Adapter - High Pressure to High Pressure20EZMAH4H6 Autoclave Engineers Male / Male EZ-Union Adapter - High Pressure to High Pressure
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

20EZMAH4H6

Autoclave Engineers Male / Male EZ-Union Adapter - High Pressure to High Pressure

Parker Autoclave Engineers Male / Male EZ-Union Adapter - High Pressure to High Pressure

Manufacturer Parker
Part Number 20EZMAH4H6
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers offers an EZ-Union male to male adapter providing a fast and simple way to install or remove components from a pressure system. The face seal o-ring design provides a positive seal with easy and reliable operation. EZ-Union adapters can be provided with any standard or special connection combination. EZ-Unions are constructed from 316 SS and are supplied with a Viton o-ring as standard. Weld ends are made from super Duplex F255. Special material EZ union adapters may be supplied with four flats in place of standard hex. Maximum pressure rating is based on the lowest rating of any component. Actual working pressure may be determined by tubing pressure rating, if lower.
Email this page to a friend


Product Attributes


UOM:
EA
Connection A:
M250C
Connection B:
M375C
Hex Size:
1.00 Inch (25.4mm)
Material:
316 Stainless steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Pressure Range:
High pressure
Configuration Type:
Adapter - EZ union - male / male
Configuration Sub-Type:
High pressure to high pressure
Inch/Metric:
Inch
Minimum Opening:
0.09 Inch (2.29mm)
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Application:
In the key markets of chemical & petrochemical, research, oil & gas industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
