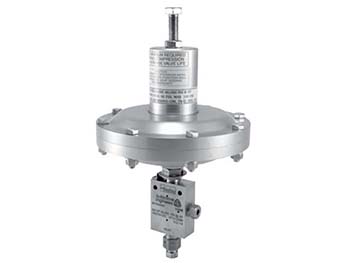

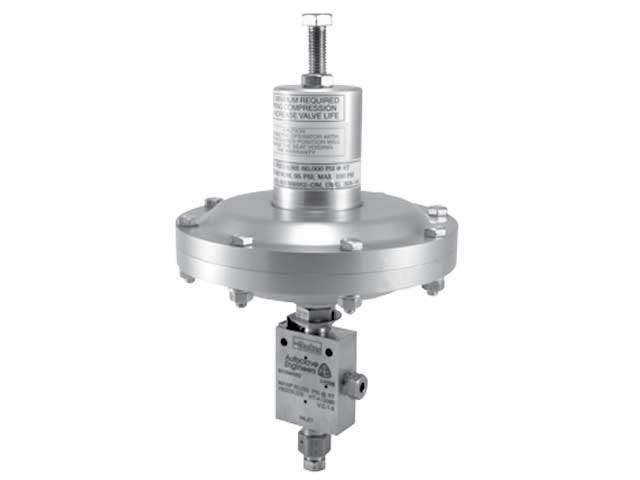

20SM6071-CM Autoclave Engineers Medium Pressure Needle Valve with Diaphragm Style Pneumatic Operated Actuator - 20SM

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

20SM6071-CM

Autoclave Engineers Medium Pressure Needle Valve with Diaphragm Style Pneumatic Operated Actuator - 20SM

Parker Autoclave Engineers Medium Pressure Needle Valve with Diaphragm Style Pneumatic Operated Actuator - 20SM

Manufacturer	Parker
Part Number	20SM6071-CM
Availability	Out of Stock Call to order
UOM	EA

Call for availability

Description:

All Parker Autoclave Engineer’s valves are available with diaphragm or piston type actuators. Six sizes of air actuators (light, heavy light, medium, heavy duty or extra heavy, single and double stage) are offered to meet the service requirements of Parker Autoclave Engineer’s Low, Medium and High Pressure valves. Both air-to-open (normally closed) and air-to close (normally open) designs are included in the product line. Optional air to open and close are available upon request. For most Parker Autoclave Engineers valve series there is a choice of two or more actuator designs. This provides the most efficient and economical pneumatic valve operation for any combination of process requirements and available air pressure. Actuators are available for outdoor service. These operators provide corrosion resistant components and prevent the ingress of outside elements.

Email this page to a friend

Product Attributes

UOM:

Connection:

SF375CX20

Tubing O.D.:

3/8"

Packing:

PTFE

Stem type:

Vee non-rotating

Operator Duty Rating:

Medium - air-to-close

Approx air usage/cycle @ 100 psi (6.89 bar):

.07 SCF (.0019 SCM)

Area of Piston or Diaphragm:

19.6 in² (126.5 cm²)

Material:

316 Stainless steel

Trade Name:

Slimline

Valve Type:

Needle valve with actuator

Series:

20SM

Pressure Range:

Medium pressure

Configuration Type:

2-way straight

Inch/Metric:

Inch

Connection Type:

Coned and threaded

CV Factor:

0.75

Parker Group:

Instrumentation

Orifice size:

0.219 Inch (5.6mm)

Parker Division:

Autoclave Engineers

Operating Temperature:

0 F to 450 F (-17.8 C to 232 C)

Pressure Rating:

20,000 psi (1379 bar)

Application:

In chemical/petrochemical, waterblast, research, and oil and gas industries.
