24120-4-4 20 Series 2412024120-4-4 20 Series 24120
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

24120-4-4

20 Series 24120

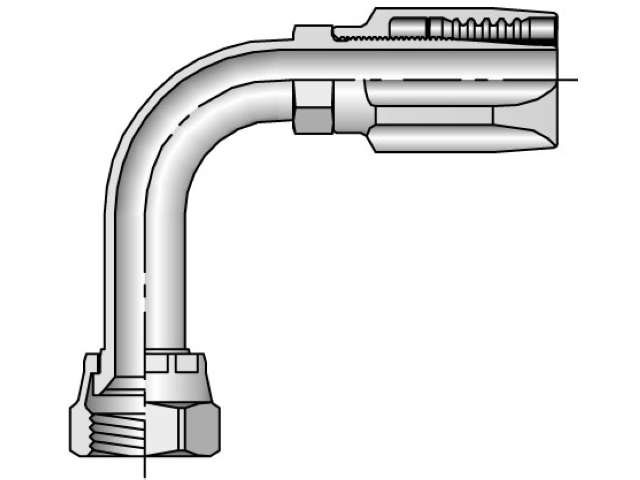

Parker Field Attachable Shell & Nipple Female JIC 37° - Swivel - 90° Elbow - Long Drop

Manufacturer Parker
Part Number 24120-4-4
Availability Out of Stock Call to order
UOM EA

Description:
20 Series Parker No-Skive Fitting is a field attachable (reusable) style fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short. 20 Series Fittings has zinc dichromate plating and are used on Parker 201-261, 206, 221FR, 225, 235, 266, SS25UL Hoses - the Parker Engine_Airbrake_Marine_Gas Hoses.
Email this page to a friend


Product Attributes


UOM:
EA
Inner Diameter:
0.188 Inch
End 1:
1/4 Inch
Material:
Steel
Component Type:
Fittings
Series:
20
Configuration Type:
Female JIC 37° - Swivel - 90° Elbow - Long Drop
Inch/Metric:
Inch
Parker Division:
Hose Products
Inner Diameter Inch/mm:
Inch
Coupler/Nipple/Shell:
Shell & Nipple
End 1 Type:
Inch
Hose Connection Type:
Field Attachable
Parker Group:
Fluid Connector

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
