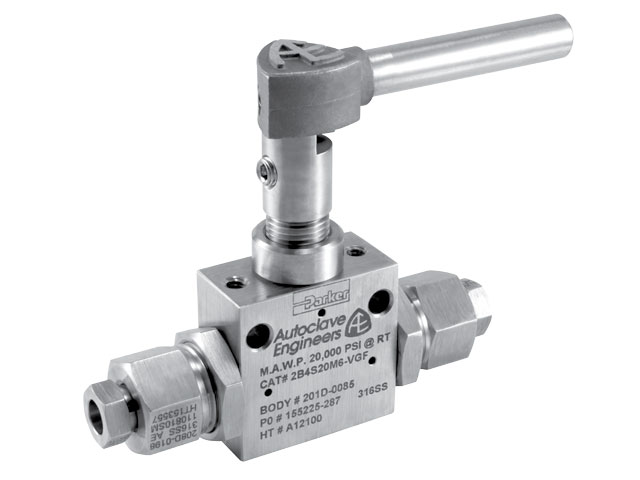

Click Image to Zoom
2B4S20M6-AC Autoclave Engineers 2-Way Ball Valve - 2B4

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

2B4S20M6-AC

Autoclave Engineers 2-Way Ball Valve - 2B4

Parker Autoclave Engineers 2-Way Ball Valve - 2B4

Manufacturer	Parker
Part Number	2B4S20M6-AC
Availability	Out of Stock Call to order
UOM	EA

Call for availability

Description:

Ball Valve Features: • One-piece, trunnion mounted style, stem design eliminates shear failure and reduces the effects of side loading found in two piece designs. • Re-torqueable seat glands for longer seat life. • PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion. • Full-port flow path minimizes pressure drop. • 316 cold worked stainless steel construction. • Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque. • Quarter turn from open to close with positive stop. • Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C). • Optional o-rings available for high-temperature applications. • Optional wetted materials. • Wide selection of tube and pipe end fittings available. • Electric and pneumatic actuator options.

Email this page to a friend

Product Attributes

UOM:

Connection Type:

SF375CX20

Orifice size:

0.250 Inch (6.35mm)

Minimum Orifice size:

0.203 Inch (5.16mm)

End Connection Code:

Seat Gland Hex:

1.00 Inch (25.40mm)

Material:

316 Stainless steel

Trade Name:

Slimline

Valve Type:

Ball Valve with Actuator

Series:

Flow Configuration Type:

Two-way shut off

Configuration Type:

2-way

Inch/Metric:

Inch

CV Factor:

1.51

Operator Type:

Pneumatic - air to close/spring to open

Material - Seats:

PEEK

Stem Seal:

PTFE

Parker Division:

Autoclave Engineers

Material - Seals:

Fluorocarbon rubber

Parker Group:

Instrumentation

Pressure Rating:

80 psi (5.51 bar) min / 150 psi (10.34 bar) max

Operating Temperature:

0 F to 175 F (-17 C to 79 C)

Stem type:

Trunnion mounted - 1 piece

Application:

Laboratories, test stands, control panels, chemical research, pilot plants, water blast pumping units, and high volume chemical injection skids.
