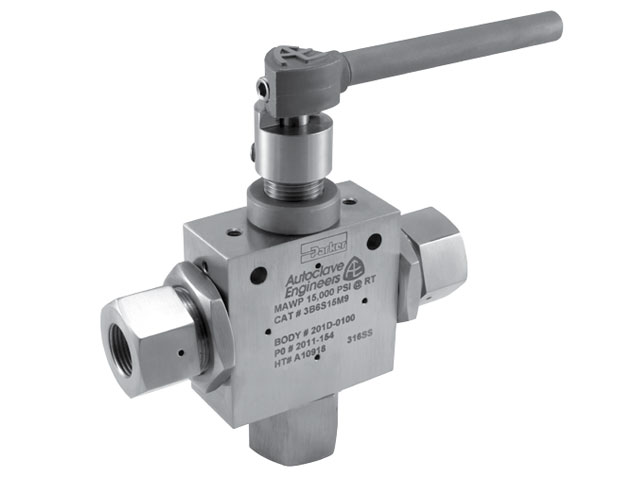

3BD6S15M6 Autoclave Engineers 3-Way Diverter Ball Valve - 3BD63BD6S15M6 Autoclave Engineers 3-Way Diverter Ball Valve - 3BD6
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

3BD6S15M6

Autoclave Engineers 3-Way Diverter Ball Valve - 3BD6

Parker Autoclave Engineers 3-Way Diverter Ball Valve - 3BD6

Manufacturer Parker
Part Number 3BD6S15M6
Availability Out of Stock Call to order
UOM EA

Description:
Ball Valve Features: • One-piece, trunnion mounted style, stem design eliminates shear failure found in two piece designs and reduces effects of side loading. • Re-torqueable seat glands for longer seat life. • Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion. • Full-port flow path minimizes pressure drop. • 316 cold worked stainless steel construction. • Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque. • Available in 90° turn diverter and 180° turn switching models. • Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C). • Optional o-rings available for high-temperature applications. • Optional wetted materials. • Wide selection of tube and pipe end fittings available. • Electric and pneumatic actuator options.
Email this page to a friend


Product Attributes


UOM:
EA
Connection Type:
SF375CX20
Orifice size:
0.328 Inch (8.33mm)
Minimum Orifice size:
0.203 Inch (5.16mm)
End Connection Code:
M6
Seat Gland Hex:
1.38 Inch (35.05mm)
Material:
316 Stainless steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Trade Name:
Slimline
Valve Type:
Ball Valve
Series:
3BD
Flow Configuration Type:
90° turn crossover
Configuration Type:
3-way diverter
Inch/Metric:
Inch
CV Factor:
2.1
Operator Type:
Manual
Material - Seats:
PEEK
Stem Seal:
PTFE
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Material - Seals:
Fluorocarbon rubber
Operating Temperature:
0 F to 400 F (-17.8 C to 204 C)
Stem type:
Trunnion mounted - 1 piece
Pressure Rating:
15,000 psi (1034 bar) MAWP
Application:
Laboratories, test stands, control panels, chemical research, pilot plants, water blast pumping units, and high volume chemical injection skids.
