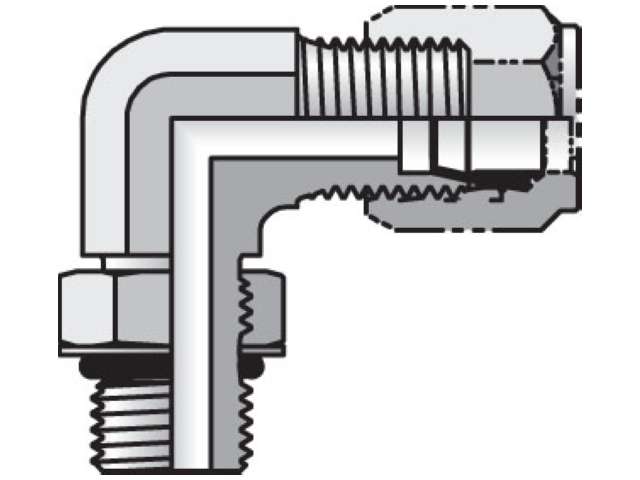

4 C5U-SS Ferulok 90° Elbow C5BU4 C5U-SS Ferulok 90° Elbow C5BU
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

4 C5U-SS

Ferulok 90° Elbow C5BU

Parker Straight Thread Elbow Flareless / SAE-ORB

Manufacturer Parker
Part Number 4 C5U-SS
Availability Out of Stock Call to order
UOM EA

Description:
The Ferulok fitting design utilizes a combination of proven European features, coupled with many innovative product improvements instituted by Parker Hannifin. On assembly, the ferrule “bites” into the outer surface of the tube with sufficient strength to hold the tube against pressure, without significant distortion of the inside tube diameter. Ferulok fittings are especially suitable for use with tube wall thickness ranging from medium to extra heavy.
Email this page to a friend


Product Attributes


UOM:
EA
End 1:
1/4 Inch
End 2:
7/16-20 UN/UNF-2A
Material:
Stainless Steel
Component Type:
Fittings
Trade Name:
Ferulok
Series:
Ferulok
Tube Fitting/Adapter Type:
Bite Type, Ferulok Flareless
Configuration Type:
90° Elbow
Configuration Sub-Type:
Straight Thread Elbow Flareless / SAE-ORB
Inch/Metric:
Inch
Parker Group:
Fluid Connector
End 1 Type:
Inch
End 2 Type:
UN/UNF-2A
Parker Division:
Tube Fitting

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: 4 C5USS, 4C5USS
