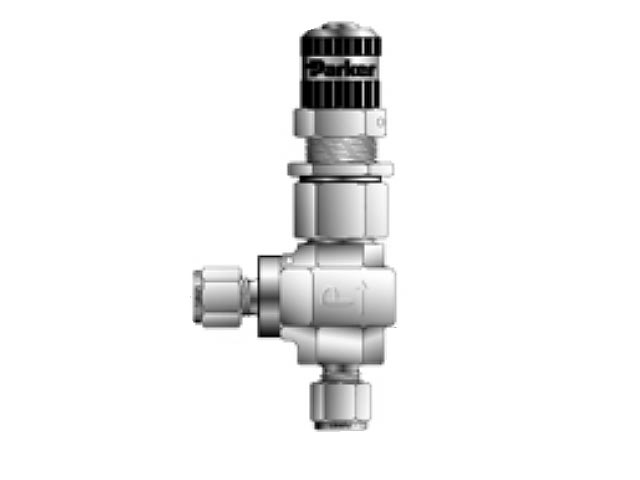

Click Image to Zoom
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN.
IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED
REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.
4M4A-RH4A-NET-SS-K2
Relief Valve - Angle - RH4
Parker Angle Relief Valve - RH4 Series
| Manufacturer |
Parker |
| Part Number |
4M4A-RH4A-NET-SS-K2 |
| Availability |
Out of Stock
Call to order
|
| UOM |
EA |
| Description: |
Parker RH4 Relief Valves are designed such that when the upstream pressure exceeds the closing force exerted by the spring, the lower stem opens, permitting flow through the valve. Flow through the valve increases proportionately to the increase in upstream pressure. Pressure settings are externally adjustable while the valve is in operation. Eight different spring ranges provide greater system sensitivity and enhanced performance.
|
Inlet port 1:
1/4" male NPT
Outlet port 2:
1/4" A-LOK compression
Material - Seals:
Neoprene rubber
Cracking pressure:
350-750 psig (24.1-51.7 bar)
Material:
316 Stainless steel
Pressure Range:
Low pressure
Configuration Type:
Angle
Connection Type:
Male NPT / Double ferrule compression
Pressure Rating:
6,000 psig (414 bar) CWP
Parker Division:
Instrumentation Products
Parker Group:
Instrumentation
Lubricant:
Perfluorinated polyether
Operating Temperature:
-45 F to 250 F (-43 C to 121 C)
Orifice size:
0.14 Inch (3.6mm)
Cracking Pressure:
350-750 psig (24.1-51.7 bar)
Application:
In the key markets of chemical & refining, food, beverage & dairy, medical & dental, microelectronics, oil & gas, and power generation.
