52235742 Wika 52235742 General Purpose Pressure Transmitter Model A-10 4.5 V, 3-wire 1/4 NPT Male X 4 Pin Locking Plug M12 x 1 Stainless Steel52235742 Wika 52235742 General Purpose Pressure Transmitter Model A-10 4.5 V, 3-wire 1/4 NPT Male X 4 Pin Locking Plug M12 x 1 Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

52235742

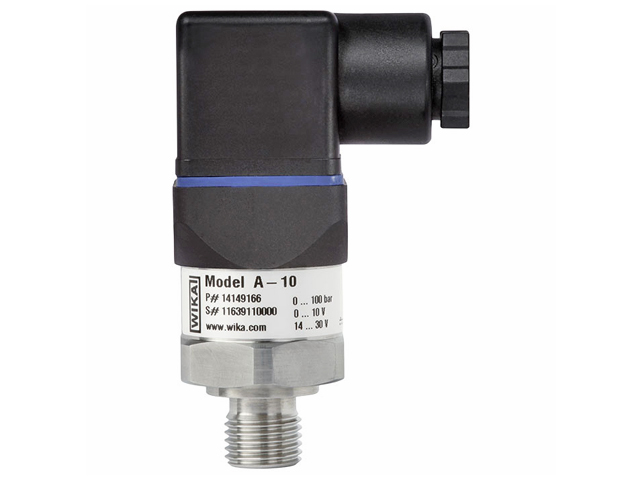

Wika 52235742 General Purpose Pressure Transmitter Model A-10 4.5 V, 3-wire 1/4 NPT Male X 4 Pin Locking Plug M12 x 1 Stainless Steel

General Purpose Pressure Transmitter

Manufacturer Wika
Part Number 52235742
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $144.22
Qty:

Description:
Wika Model A-10 pressure transmitter is precision engineered and manufactured to fit many industrial and OEM pressure measurement applications. The rugged design provides resistance to vibration, shock, wide temperature variations, RFI and other extreme environmental conditions that are typical of industrial and OEM applications. Performance and reliability is enhanced by the all stainless steel welded measuring cell that eliminates the need for soft sealing materials that may deteriorate over time. The state-of-the-art manufacturing and assembly process increases the long term reliability of the A-10.
Email this page to a friend


Product Attributes


UOM:
EA
Process Connection:
1/4 NPT Male
Electrical Connection:
MDIN
Range:
30 PSI
Transmitter Output:
4.5 V, 3-wire
Supply Voltage:
5 VDC
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
A-10
Accuracy:
±0.5% of span
Wetted Parts:
Stainless Steel
Non-linearity:
±0.5% of span BFSL
Manufacturer:
Wika
Application:
Machine building, ship building, measurement and control technology, hydraulics and pneumatics pumps and compressors.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
