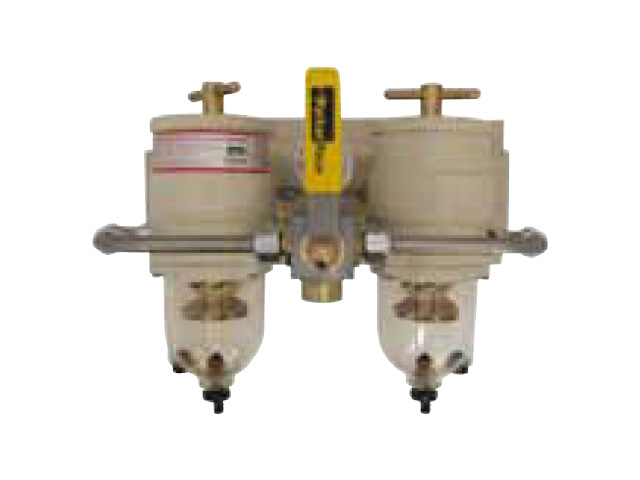

75500FGX2 Racor Mobile Diesel Turbine 75500FGX Series Fuel Filter/Water Separator75500FGX2 Racor Mobile Diesel Turbine 75500FGX Series Fuel Filter/Water Separator
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

75500FGX2

Racor Mobile Diesel Turbine 75500FGX Series Fuel Filter/Water Separator

Manufacturer Parker
Part Number 75500FGX2
Availability Out of Stock Call to order
UOM EA

Description:
The Racor Mobile Diesel Turbine Series is the most trusted fuel filtration water separator available in the market and the Parker global support and distribution network ensures that you can find our product where ever you are in the world. The design and manufacturing team at Racor developed a unique engineered media that incorporates a graduated pore structure to increase the dirt holding capacity and extend filter life. The waterproof, rustproof and dirtproof Aquabloc media undergoes a water repelling treatment process that simultaneously separates and coalesces, forming heavy water droplets that collect into the filter bowl.
Email this page to a friend


Product Attributes


UOM:
EA
Filter rating:
2 micron
Bowl Type:
Clear plastic bowl w ss shield
Maximum Flow:
120 gph (454 lph)
Replacement Element:
2010 Series
Weight:
17 lbs (7.7 kg)
Width:
14.5 in (36.8 cm)
Valve Type:
6 way valve
Series:
500
Configuration Type:
Fuel Filter/Water Separator
Inch/Metric:
Inch
Port Size:
3/4”-16 SAE
Height:
11.5 Inch (29.2 cm)
Depth:
9.5 Inch (24.1 cm)
Clean Pressure Drop:
0.70 psi (0.05 bar)
Heater:
No heater
Pressure Rating:
15 psi (1.03 bar)
Operating Temperature:
-40 F to 255 F (-40 C to 124 C)
Maximum Fuel Temperature:
190 F (88 C)
Overhead Clearance:
4.0 Inch (10.2 cm)
Parker Group:
Filtration
Parker Division:
Racor
Application:
Powergen, agricultural equipment, construction vehicles, light, medium and heavy duty trucks and other diesel powered equipment.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
