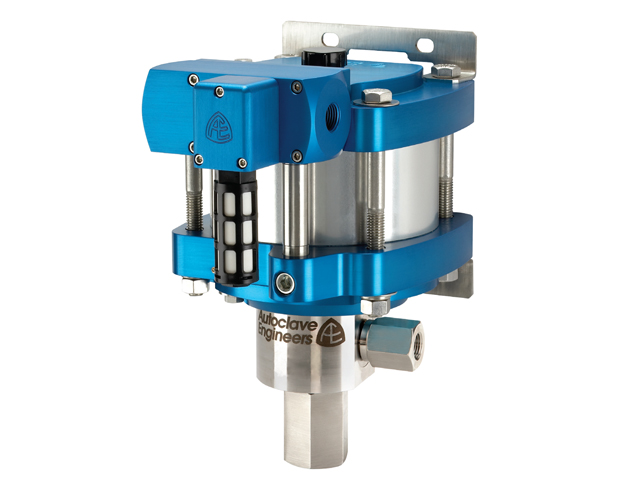

ASL10-01SCTV Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL10-01 SeriesASL10-01SCTV Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL10-01 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

ASL10-01SCTV

Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL10-01 Series

Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL10-01 Series

Manufacturer Parker
Part Number ASL10-01SCTV
Availability Out of Stock Discontinued
UOM EA

Description:
Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL10-01 Series
Email this page to a friend


Product Attributes


UOM:
EA
Liquid Inlet Connection:
1" FNPT
Liquid Outlet Connection:
1/2" FNPT
Liquid Inlet Location:
Side
Isolation Chamber:
Included
Liquid Seal Material:
Thermoplastic polyester u-cup with Viton o-rings
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
ASL10-01
Pump Type:
Liquid Pump
Inch/Metric:
Inch
Material:
Stainless Steel
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Ratio:
1:11
Maximum Outlet Pressure:
1,600 psi (110 bar)
Volume Displacement per Cycle:
5.22 in³ (85.5 cm³)
Main Air Drive Supply Connection:
1/2" FNPT
Air Drive type:
Single acting, single piston
Air Drive Seals:
Buna-N
Maximum Operating Temperature:
0 F to 140 F (-18 C to 60 C)
Air Piston Diameter:
6 Inch
Application:
In the key markets of oil and gas, chemical, industrial and research industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: ASL1001SCTV
