BPT12

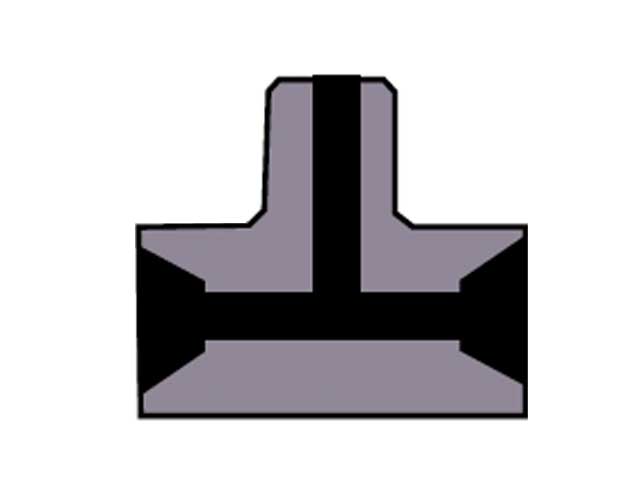

Autoclave Engineers Low Pressure Male Branch Tee Fitting - P
Parker Autoclave Engineers Low Pressure Male Branch Tee Fitting - P
| Manufacturer |
Parker |
| Part Number |
BPT12 |
| Availability |
Out of Stock
Call to order
|
| UOM |
EA |
| Description: |
Parker Autoclave Engineers P Series pipe fittings and couplings are designed for primary liquid and gas applications. Available from 1/4" to 1" NPT to 15,000 psi and temperatures to 400°F.
Special material components may be supplied with four flats in place of standard hex.
NPT (Pipe) Connections:
- NPT threads must be sealed using a high quality PTFE tape and/or paste product. Refer to thread sealant manufacturer's instructions on how to apply thread sealant.
- Sealing performance may vary based on many factors such as pressure, temperature, media, thread quality, thread material, proper thread engagement and proper use of thread sealant.
- Customer should limit the number of times an NPT fitting is assembled and disassembled because thread deformation during assembly will result in deteriorating seal quality over time. When using only PTFE tape, consider using thread lubrication to prevent galling of mating parts.
|
Connection Type:
3/4 Inch NPT
Minimum Opening:
0.609 Inch (14.47mm)
Length:
3.00 Inch (76.2mm)
Material:
316 Stainless steel
Pressure Range:
Low pressure
Height:
2.50 Inch (63.5mm)
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Rating:
10,000 psi (689.46 bar)
Operating Temperature:
-423 F to 400 F (-252 C to 204 C)
Application:
In the key markets of chemical & petrochemical, research, and oil & gas industries.
Safety Notice
WARNING: Products containing brass have a chemical known to the State of California to cause birth
defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
