KCBLX240-316MC Autoclave Engineers Medium Pressure Anti-Vibration Collet Gland Assembly - KCBGLXKCBLX240-316MC Autoclave Engineers Medium Pressure Anti-Vibration Collet Gland Assembly - KCBGLX
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

KCBLX240-316MC

Autoclave Engineers Medium Pressure Anti-Vibration Collet Gland Assembly - KCBGLX

Parker Autoclave Engineers Medium Pressure Anti-Vibration Collet Gland Assembly - KCBGLX

Manufacturer Parker
Part Number KCBLX240-316MC
Availability Out of Stock Call to order
UOM EA

Description:

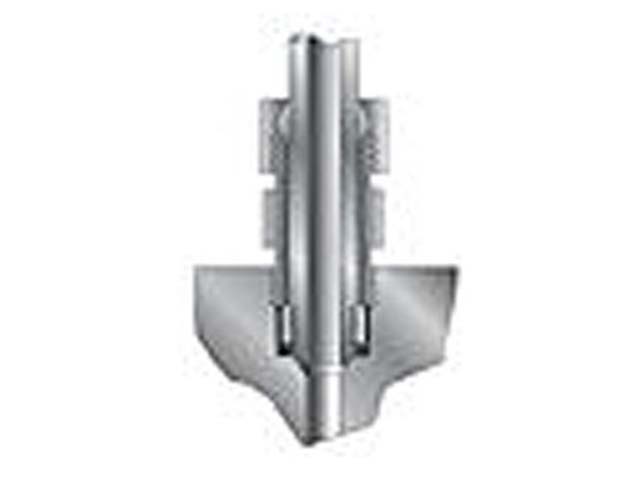

Series KCBGLX extends the gland nut to provide room for the tapered slotted collet. The design provides a slight difference in angles between the collet and the corresponding taper of the gland nut. As the nut is tightened, it acts to wedge the tapered end of the collet into a gripping engagement with the tubing. A less complex and more economical design than other vibration-resistant connections, the collet gland assembly utilizes the same coned-and-threaded features of Autoclave medium pressure connections. Materials: Type 316 stainless steel with bonded dry film (316 MC) moly lubricant. Special material assemblies may be supplied with four flats in place of standard hex. Standard Autoclave Engineers collar not included in complete assembly.
Email this page to a friend


Product Attributes


UOM:
EA
Description:
Anti-vibration collet body
Tubing O.D.:
1-1/2 Inch (38.10mm)
Material:
316 stainless steel with bonded dry film moly lubricant
Series:
KCBGLX
Ferrule Type:
Coned and threaded
Pressure Range:
Medium to high pressure
Configuration Type:
Anti-vibration collet body
Inch/Metric:
Inch
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Operating Temperature:
-425 F to 1200 F (-252 C to 649 C)
Pressure Rating:
43,000 psi (2964.70 bar)
Application:
In the key markets of chemical & petrochemical, research, oil & gas industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
