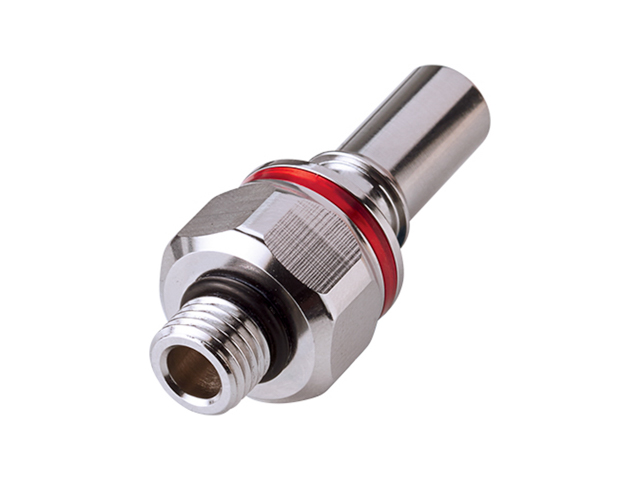

LQ4D46004RED CPC Colder Products LQ4D46004RED 1/4 SAE Valved Liquid Cooling Coupling Insert Warm RedLQ4D46004RED CPC Colder Products LQ4D46004RED 1/4 SAE Valved Liquid Cooling Coupling Insert Warm Red
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

LQ4D46004RED

CPC Colder Products LQ4D46004RED 1/4 SAE Valved Liquid Cooling Coupling Insert Warm Red

Manufacturer CPC Colder Products
Part Number LQ4D46004RED
Availability Out of Stock Call to order
UOM EA

Description:
1/4 SAE Valved Liquid Cooling Coupling Insert Warm Red
Email this page to a friend


Product Attributes


UOM:
EA
Ordering Note:
EA (PURCHASE QTY INCREMENTS OF 10 PCS)
Size:
1/4 SAE
Material Finish:
Chrome
Mounting:
Thread
Color:
Chrome with warm red
Seal Option:
EPDM
Valve Option:
Valved
Material:
Brass
Series:
LQ4
Pressure Range:
Vacuum to 120 psi, 8.3 bar
Valve Spring:
Stainless Steel
Spilling:
<0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
Temperature Range:
0°F to 240°F (-17°C to 115°C)
Manufacturer:
CPC Colder Products
Application:
Broad range of CPC products are found in thousands of applications across many life sciences, specialty industrial and chemical handling markets.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
