Back to Product: Wika M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 All-Welded System Gauge Model M932.D1 4-1/2 Dial 200 PSI 1/2 NPTF Black Thermoplastic Case

Click Image to Zoom
M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 Wika M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 All-Welded System Gauge Model M932.D1 4-1/2 Dial 200 PSI 1/2 NPTF Black Thermoplastic Case

M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 Wika M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 All-Welded System Gauge Model M932.D1 4-1/2 Dial 200 PSI 1/2 NPTF Black Thermoplastic Case

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21

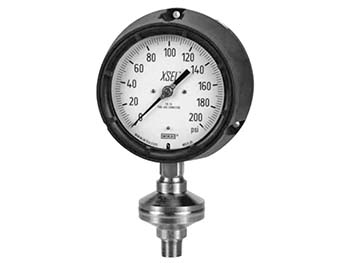

Wika M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21 All-Welded System Gauge Model M932.D1 4-1/2 Dial 200 PSI 1/2 NPTF Black Thermoplastic Case

All-Welded System Gauge

Manufacturer	Wika
Part Number	M932.D1.P200PX.LM.N4F.SS.CA-0.CA.21
Availability	Out of Stock Call to order
UOM	EA

Call for availability

Description:

Wika Model M932.D1 all-welded gauge assembly is constructed using WIKA gauge model number 232.34 and diaphragm seal model number L990.34. The diaphragm is recessed within the all-welded seal body. The pressure gauge is back-welded to the seal upper housing to eliminate another potential leak path. The threaded seal fill port has been removed to ensure a tamper resistantdesign. Additional process wetted materials, process connections, system fill fluids and accessories are available to meet the rigorous demands of most applications.

Email this page to a friend

Product Attributes

UOM:

Dial Size:

4-1/2

Process Connection:

1/2 NPTF

Case Material:

Black thermoplastic

Gauge Fill:

Dry

Gauge Pressure Range:

200 PSI

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Series:

M932.D1

Wetted Parts:

316L Stainless Steel Movement

Accuracy:

±0.5% of span

Upper Housing:

316L Stainless steel

Flushing Connection:

Without

Window:

Acrylic

Dial Material:

White aluminum

Pointer Material:

Black aluminum

Lower Housing:

Carpenter 20

Diaphragm material:

Carpenter 20

System Fill Fluid:

Halocarbon KN21

Manufacturer:

Wika

Application:

Chemical, petrochemical and process industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
