P-7605 Autoclave Engineers Prebulged Rupture Disc - 1/2 Inch FlatP-7605 Autoclave Engineers Prebulged Rupture Disc - 1/2 Inch Flat
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

P-7605

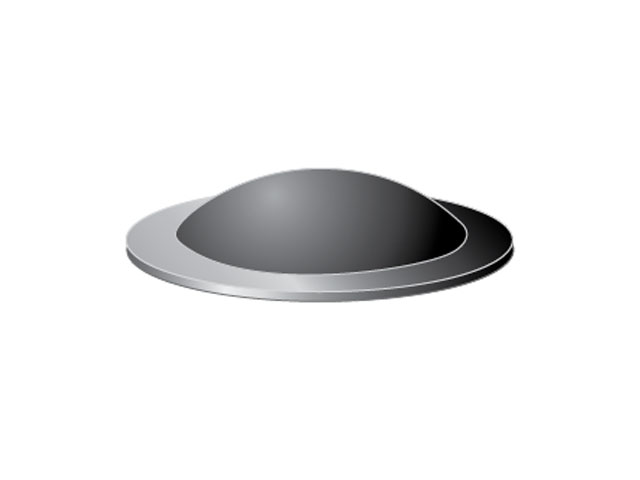

Autoclave Engineers Prebulged Rupture Disc - 1/2 Inch Flat

Parker Autoclave Engineers Prebulged Rupture Disc - 1/2 Inch Flat

Manufacturer Parker
Part Number P-7605
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers Prebulged Rupture Discs are available in various styles the 3/16F style features a 3/16” blow-out diameter and a flat seat which can be ordered in pressure range from 200 to 27,000 psi (13.8 to 1862 bar). The 1/4A style features a 1/4” blow-out diameter and a 30 degree angular seat which can be ordered in pressures from 900 to 60,000 psi (62 to 4137 bar). The 1/4F style features a 1/4” blow-out diameter and a flat seat which is used for pressure above 60,000 psi (4137 bar). The 1/2F style features a 1/2” blow-out diameter and a flat seat which can be ordered in pressures from 500 to 10,000 psi (35 to 690 bar). The rupture discs are available in Inconel 600 (Standard), Aluminum, Silver, Hastelloy C, Nickel, Monel, and type 316 Stainless Steel.
Email this page to a friend


Product Attributes


UOM:
EA
Rupture Disc Style:
1/2F
Disc Blow-out Diameter:
0.500 Inch (12.70mm)
Rupture Disc Seat:
Flat
Rupture Disc Material:
Inconel 600
Rupture Disc Pressure Range:
727 to 795 psi (50 to 55 bar)
Series:
SS, CSX, CS series
Accessory type:
Rupture disc
Pressure Range:
Low, medium and high pressures
Inch/Metric:
Inch
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Disc Max Temperature Rating:
900 F (482 C)
Application:
In the key markets of petrochemical, chemical, refining, power and other process industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
