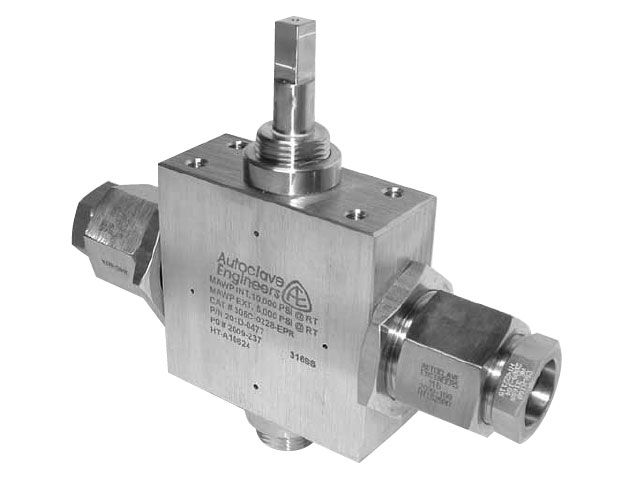

S2B12S10P12 Autoclave Engineers 2-Way Subsea Ball Valve - S2B12S2B12S10P12 Autoclave Engineers 2-Way Subsea Ball Valve - S2B12
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

S2B12S10P12

Autoclave Engineers 2-Way Subsea Ball Valve - S2B12

Parker Autoclave Engineers 2-Way Subsea Ball Valve - S2B12

Manufacturer Parker
Part Number S2B12S10P12
Availability Out of Stock Call to order
UOM EA

Description:
Ball Valve Features: • One-piece, trunnion mounted style, stem design eliminates shear failure found in two-piece designs. • Re-torqueable seat glands for longer seat life. • PEEK seats which offer excellent resistance to chemicals, heat, and wear/abrasion. • Full-port flow path minimizes pressure drop. • 316 cold worked stainless steel construction. • Buna-N o-ring standard 250°F (121°C) max. • Low friction pressure assisted graphite filled PTFE stem seal increases cycle life. • Wide selection of tube and pipe end fittings available. • Available to NACE MR-01-75. • Optional wetted materials. • Available in a number of flow configurations and port sizes.
Email this page to a friend


Product Attributes


UOM:
EA
Connection Type:
3/4 Inch NPT
Orifice size:
.750 Inch (19.05mm)
Minimum Orifice size:
.750 Inch (19.05mm)
End Connection Code:
P12
Seat Gland Hex:
1.88 Inch (47.8mm)
Material:
316 Stainless steel
Valve Type:
Ball Valve
Series:
S2B
Flow Configuration Type:
90° turn
Configuration Type:
2-way
Inch/Metric:
Inch
CV Factor:
21
Operator Type:
Manual
Material - Seats:
PEEK
Stem Seal:
PTFE
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Material - Seals:
Nitrile rubber
Stem type:
Trunnion mounted - 1 piece
Pressure Rating:
10,000 psi (690 bar) MAWP
Operating Temperature:
250 F (121 C) MAX
Water Depth (Max):
11,500 ft (3505m)
External Pressure (Max):
5,000 psi (345 bar)
Application:
Subsea and petroleum industies and other high pressure applications above and below the surface.
