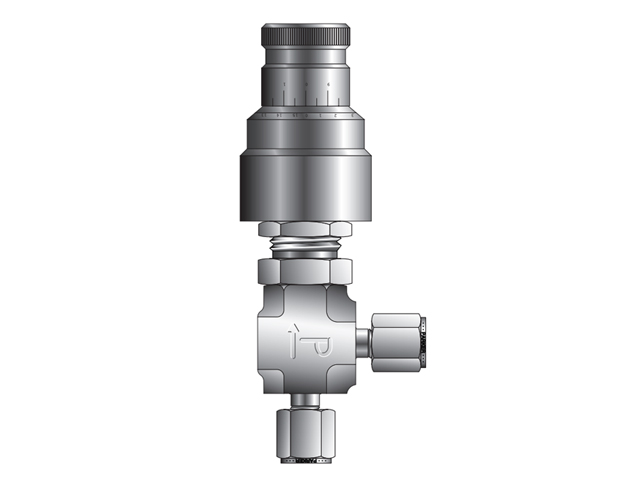

1A-H3A-V-SS-NS-HT Metering Valve - Angle - HR

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

1A-H3A-V-SS-NS-HT

Metering Valve - Angle - HR

Parker Metering Valve - Angle - HR Series

Manufacturer	Parker
Part Number	1A-H3A-V-SS-NS-HT
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 5-6 weeks.
UOM	EA

Price: $591.82

Qty:

Description:

Parker HR Series Metering Valves provide the highest degree of precision metering for moderate pressure applications. This series also features shut-off capability not found in most metering valves.

Email this page to a friend

Product Attributes

UOM:

Inlet port 1:

1/16" A-LOK compression

Outlet port 2:

1/16" A-LOK compression

Material - Seals:

Fluorocarbon rubber

Material:

Stainless Steel

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Trade Name:

A-LOK®

Valve Type:

Metering Valve

Series:

H3A

Configuration Type:

Angle - high temperature

Inch/Metric:

Inch

Connection Type:

Double ferrule compression

CV Factor:

0.0031

Parker Division:

Instrumentation Products

Parker Group:

Instrumentation

Pressure Rating:

250 psig (17 bar) CWP

Turns to open:

15 +/- 1

Handle Type:

No handle (slotted stem)

Operating Temperature:

-10 F to 400 F (-23 C to 204 C)

Orifice size:

0.000241 Inch (.006mm)

Application:

In the key markets of chemical & refining, food, beverage & dairy, medical & dental, microelectronics, oil & gas, and power generation.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
