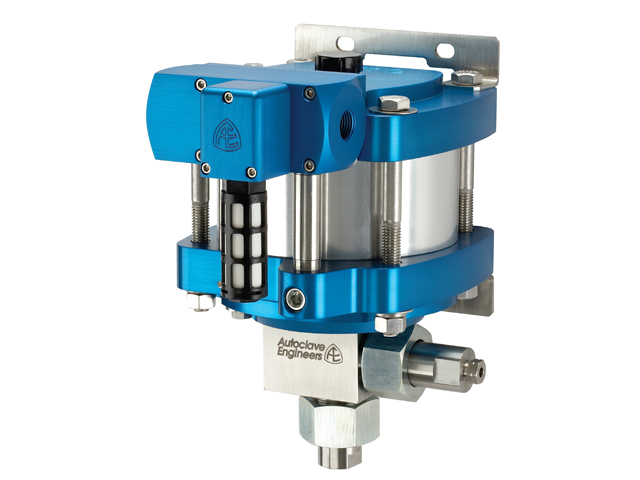

ASL150-01BCP Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL150-01 SeriesASL150-01BCP Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL150-01 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

ASL150-01BCP

Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL150-01 Series

Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL150-01 Series

Manufacturer Parker
Part Number ASL150-01BCP
Availability Out of Stock Discontinued
UOM EA

Description:
Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL150-01 Series
Email this page to a friend


Product Attributes


UOM:
EA
Liquid Inlet Connection:
1/2" FNPT
Liquid Outlet Connection:
F250C
Liquid Inlet Location:
Bottom
Isolation Chamber:
Included
Liquid Seal Material:
UHMWPE u-cup
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
ASL150-01
Pump Type:
Liquid Pump
Inch/Metric:
Inch
Material:
Stainless Steel
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Ratio:
1:150
Maximum Outlet Pressure:
21,500 psi (1,482 bar)
Volume Displacement per Cycle:
0.39 in³ (6.4 cm³)
Air Drive type:
Single acting, single piston
Air Drive Seals:
Buna-N
Maximum Operating Temperature:
0 F to 140 F (-18 C to 60 C)
Air Piston Diameter:
6 Inch
Main Air Drive Supply Connection:
1/2" FNPT
Application:
In the key markets of oil and gas, chemical, industrial and research industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
