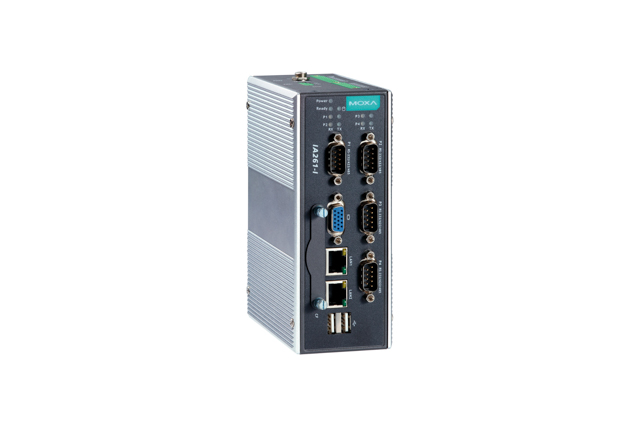

IA262-I-CE

The IA261-I/262-I embedded computers come with 2 (IA262-I) or 4 (IA261-I) RS-232/422/485 serial ports, dual CAN ports (IA262-I only), dual Ethernet ports, 8 digital input channels, 8 digital output channels, VGA output, 2 USB hosts, and a CompactFlash socket. The computers are housed in a compact, IP40-rated, industrial-strength aluminum case.

The IA261-I/262-I computers use the Cirrus Logic EP9315 Arm9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several useful communication functions, but will not generate too much heat. The built-in 32 MB NOR Flash ROM and 128 MB SDRAM provide enough memory to run your application software directly on the IA261-I/262-I.

With their built-in VGA output interface, the IA261-I/262-I embedded computers are suitable for use with SCADA systems in industrial applications, such as manufacturing automation, production line process monitoring, and mining automation, that require VGA and HMI features.

The IA261-I/262-I computers support RS-232/422/485, CAN bus, digital I/O, come with 2 KV isolation protection, and have dual LAN ports, making them ideal as communication platforms for industrial applications that require network redundancy. In addition to the standard models, wide-temperature (-40 to 75°C) models are available for use in harsh industrial automation environments.
