Department: Valves |
|
Product Type: Ball Valves and Plug Valves |
|

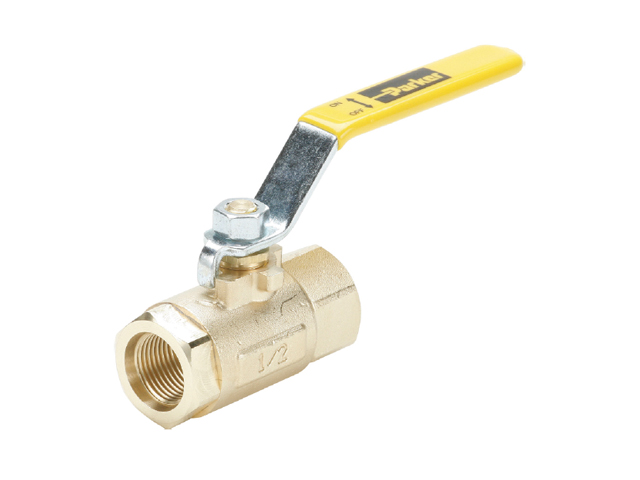

Product: Brass Ball Valve - SAE - V506P |
| » | Component Type: Valves |
| » | Valve Type: Ball Valve |
| » | Series: V506 |
| » | Configuration Type: Female to Female |
| » | Thread 1 Type: SAE |
| » | Material: Brass |
| » | Material - Ball: Chrome Plated Brass |
| » | Material - Handle: Steel |
| » | Material - Seats/Seals: PTFE |
| » | Max Pressure Saturated Steam: 150 PSI |
| » | Max Pressure WOG (Cold: 600 PSI |
| » | Max Vacuum: 29 |
| » | Operating Temperature: 0°F to +350°F |
| » | Parker Division: Fluid Systems Connector (Brass Products) |
| Part # | Availability | Price/UOM | |
|---|---|---|---|
| ++ | V506P-4 | In Stock | $84.85 |
| ++ | V506P-6 | In Stock | $69.01 |
| ++ | V506P-8 | In Stock | $60.61 |
| ++ | V506P-12 | In Stock | $172.94 |
| ++ | V506P-16 | In Stock | $156.19 |
| ++ | V506P-20 | In Stock | $123.34 |
| ++ | V506P-24 | In Stock | $153.92 |
| ++ | V506P-32 | In Stock | $280.79 |
| UOM | Flow Diameter | Thread 1 | Free Flow CV Factor | Material | Country of Origin (COO) | Harmonized Tariff (HTS) |
|---|---|---|---|---|---|---|
| EA | 0.375 Inch | 4 SAE | 4 | Brass | United States - Required COO must be noted at time of order | 8481801085 |
| EA | 0.375 Inch | 6 SAE | 5.8 | Brass | United States - Required COO must be noted at time of order | 8481801085 |
| EA | 0.5 Inch | 8 SAE | 12 | Brass | United States - Required COO must be noted at time of order | 8481801085 |
| EA | 0.685 Inch | 12 SAE | 25 | Brass | United States - Required COO must be noted at time of order | 8481801085 |
| EA | 0.875 Inch | 16 SAE | 35 | Brass | United States - Required COO must be noted at time of order | 8481801085 |
| EA | 1.18 Inch | 20 SAE | 57 | Brass | Imported, please call for specific COO | Special request, please call for HTS |
| EA | 1.5 Inch | 24 SAE | 92 | Brass | Imported, please call for specific COO | Special request, please call for HTS |
| EA | 1.89 Inch | 32 SAE | 224 | Brass | Imported, please call for specific COO | Special request, please call for HTS |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 0.375 Inch 4 SAE 4 Brass United States - Required COO must be noted at time of order 8481801085 |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 0.375 Inch 6 SAE 5.8 Brass United States - Required COO must be noted at time of order 8481801085 |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 0.5 Inch 8 SAE 12 Brass United States - Required COO must be noted at time of order 8481801085 |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 0.685 Inch 12 SAE 25 Brass United States - Required COO must be noted at time of order 8481801085 |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 0.875 Inch 16 SAE 35 Brass United States - Required COO must be noted at time of order 8481801085 |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1.18 Inch 20 SAE 57 Brass Imported, please call for specific COO Special request, please call for HTS |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1.5 Inch 24 SAE 92 Brass Imported, please call for specific COO Special request, please call for HTS |
|
UOM: Flow Diameter: Thread 1: Free Flow CV Factor: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1.89 Inch 32 SAE 224 Brass Imported, please call for specific COO Special request, please call for HTS |
