Department: Hose and Fittings |
|
Product Type: Tubing |
|

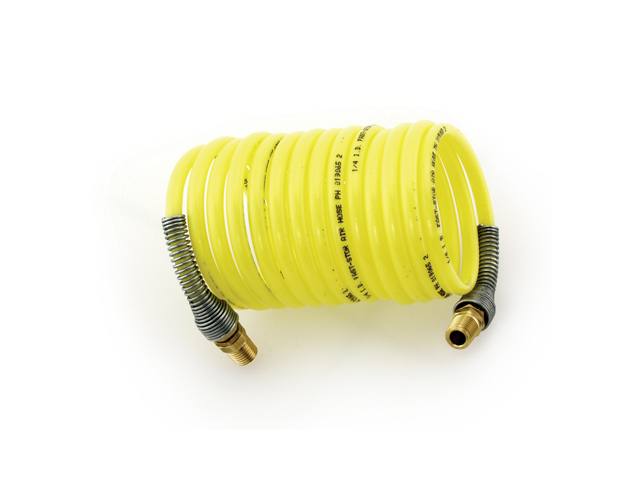

Product: AUFS-AHUFS Series Fast-Stor Urethane Tubing Assembly |
|
1- Wall Thickness: 0.0625 Inch |
| » | Component Type: Tubing |
| » | Trade Name: Fast-Stor |
| » | Series: Fast-Stor |
| » | Application: Pneumatic |
| » | Inch/Metric: Inch |
| » | Distinct Properties: Abrasion Resistance |
| » | Color: Blue |
| » | Material: Urethane |
| » | End 1 Type: NPT |
| » | End 2 Type: NPT |
| » | Inner Diameter Inch/mm: Inch |
| » | Outer Diameter Inch/mm: Inch |
| » | Parker Division: Parflex |
| » | Wall Thickness Inch/mm: Inch |
| Part # | Availability | Price/UOM | |
|---|---|---|---|
| AUFS-42-TBLU-010 | N/A | Discontinued | |
| AUFS-42-TBLU-025 | N/A | Discontinued | |
| AUFS-64-TBLU-010 | N/A | Discontinued | |
| AUFS-64-TBLU-010-R | N/A | Discontinued | |
| AUFS-64-TBLU-015-R | N/A | Discontinued | |
| AUFS-64-TBLU-020 | N/A | Discontinued | |
| AUFS-64-TBLU-025-R | N/A | Discontinued | |
| AUFS-86-TBLU-010 | N/A | Discontinued | |
| AUFS-86-TBLU-020 | N/A | Discontinued |
| UOM | Outer Diameter 1 | Wall Thickness | Max Pressure | Inner Diameter | End 1 | End 2 | Color | Material | Country of Origin (COO) | Harmonized Tariff (HTS) |
|---|---|---|---|---|---|---|---|---|---|---|
| EA | 1/4 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.125 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 1/4 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.125 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 3/8 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.25 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 3/8 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.25 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 3/8 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.25 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 3/8 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.25 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 3/8 Inch | 0.0625 Inch | 125 PSI (9 bar) | 0.25 Inch | 1/4 NPT | 1/4 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 1/2 Inch | 0.0625 Inch | 85 PSI (5.9 bar) | 0.375 Inch | 3/8 NPT | 3/8 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
| EA | 1/2 Inch | 0.0625 Inch | 85 PSI (5.9 bar) | 0.375 Inch | 3/8 NPT | 3/8 NPT | Blue | Urethane | Special request, please call for COO | Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1/4 Inch 0.0625 Inch 125 PSI (9 bar) 0.125 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1/4 Inch 0.0625 Inch 125 PSI (9 bar) 0.125 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 3/8 Inch 0.0625 Inch 125 PSI (9 bar) 0.25 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 3/8 Inch 0.0625 Inch 125 PSI (9 bar) 0.25 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 3/8 Inch 0.0625 Inch 125 PSI (9 bar) 0.25 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 3/8 Inch 0.0625 Inch 125 PSI (9 bar) 0.25 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 3/8 Inch 0.0625 Inch 125 PSI (9 bar) 0.25 Inch 1/4 NPT 1/4 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1/2 Inch 0.0625 Inch 85 PSI (5.9 bar) 0.375 Inch 3/8 NPT 3/8 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
|
UOM: Outer Diameter 1: Wall Thickness: Max Pressure: Inner Diameter: End 1: End 2: Color: Material: Country of Origin (COO): Harmonized Tariff (HTS): |
EA 1/2 Inch 0.0625 Inch 85 PSI (5.9 bar) 0.375 Inch 3/8 NPT 3/8 NPT Blue Urethane Special request, please call for COO Special request, please call for HTS |
