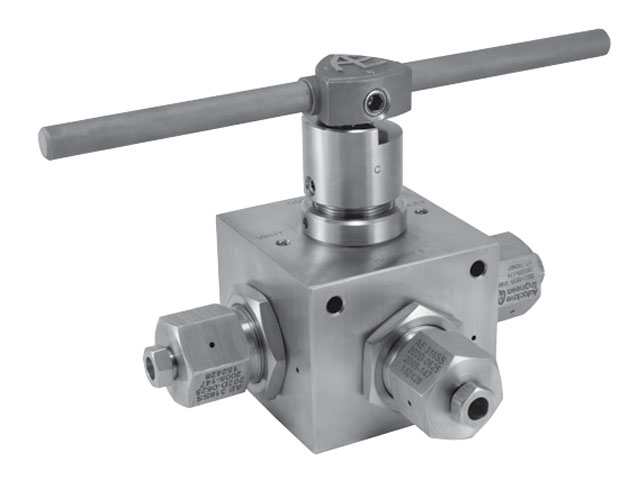

4BS6S10M9 Autoclave Engineers 4-Way Switching Ball Valve - 4BS64BS6S10M9 Autoclave Engineers 4-Way Switching Ball Valve - 4BS6
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

4BS6S10M9

Autoclave Engineers 4-Way Switching Ball Valve - 4BS6

Parker Autoclave Engineers 4-Way Switching Ball Valve - 4BS6

Manufacturer Parker
Part Number 4BS6S10M9
Availability Out of Stock Call to order
UOM EA

Description:
Ball Valve Features: • One-piece, trunnion mounted style, stem design eliminates shear failure found in two piece designs and reduces effects of side loading. • Re-torqueable seat glands for longer seat life. • Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion. • Full-port flow path minimizes pressure drop. • 316 cold worked stainless steel construction. • Low friction pressure assisted graphite filled PTFE stem seal increases cycle life and reduces operating torque. • Available in 90° turn diverter and 180° turn switching models. • Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C). • Optional o-rings available for high-temperature applications. • Optional wetted materials. • Wide selection of tube and pipe end fittings available. • Electric and pneumatic actuator options.
Email this page to a friend


Product Attributes


UOM:
EA
Connection Type:
SF562CX20
Orifice size:
0.375 Inch (9.52mm)
Minimum Orifice size:
0.312 Inch (7.92mm)
End Connection Code:
M9
Seat Gland Hex:
1.38 Inch (35.05mm)
Material:
316 Stainless steel
Trade Name:
Slimline
Valve Type:
Ball Valve
Series:
4BS
Configuration Type:
4-way switching
Flow Configuration Type:
180° turn switching
Inch/Metric:
Inch
CV Factor:
2.5
Operator Type:
Manual
Material - Seats:
PEEK
Stem Seal:
PTFE
Parker Division:
Autoclave Engineers
Material - Seals:
Fluorocarbon rubber
Parker Group:
Instrumentation
Stem type:
Trunnion mounted - 1 piece
Pressure Rating:
10,000 psi (690 bar) MAWP
Operating Temperature:
0 F to 400 F (-17.8 C to 204 C)
Application:
Laboratories, test stands, control panels, chemical research, pilot plants, water blast pumping units, and high volume chemical injection skids.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: 4BS6S10M9
