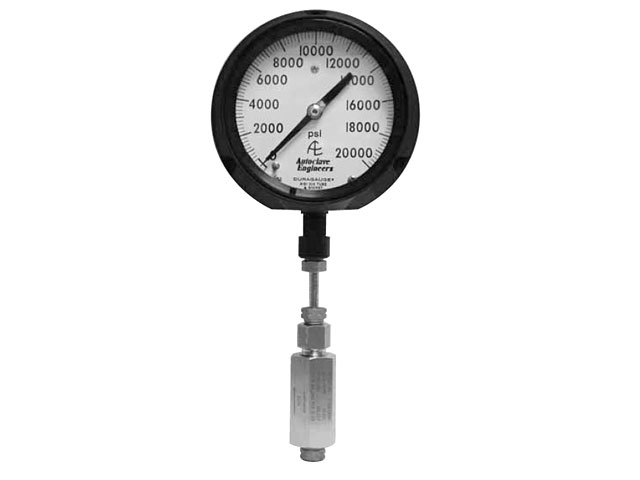

SNBFH4FH4 Autoclave Engineers Instrument Quality Pressure Gauge Snubber - SNBSNBFH4FH4 Autoclave Engineers Instrument Quality Pressure Gauge Snubber - SNB
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

SNBFH4FH4

Autoclave Engineers Instrument Quality Pressure Gauge Snubber - SNB

Parker Autoclave Engineers Instrument Quality Pressure Gauge Snubber - SNB

Manufacturer Parker
Part Number SNBFH4FH4
Availability Out of Stock Call to order
UOM EA

Description:
Parker Autoclave Engineers Instrument Quality Pressure Gauge Snubber - SNB Series are offered in 316 stainless steel as standard, with either male, female or male/female connections in 1/4" and 3/8" sizes. The pressure snubbers provide protection to gauges and instrumentation from pressure surges, pulsation and shock. The unique snubber design provides superior instrument protection while not compromising instrument accuracy or reaction time. This is accomplished by the use of existing technology from our excess flow check valve with additional design features. When sudden flow is seen, the poppet will rise, blocking the pressure surge and a small bleed hole in the poppet will allow pressure to slowly equalize. When the pressure is equalized, the poppet will then drop back down allowing normal flow to the gauge. A filter is used to prevent the hole in the plug from becoming plugged. The snubber must be mounted in the vertical position as indicated on the unit. Optional materials available upon request.
Email this page to a friend


Product Attributes


UOM:
EA
Inlet Connection:
F250C
Outlet Connection:
F250C
Snubber Connection Type:
Female/female
Material:
316 Stainless steel
Series:
SNB
Accessory type:
Pressure gauge - snubber
Pressure Range:
High pressure
Inch/Metric:
Inch
Parker Division:
Autoclave Engineers
Parker Group:
Instrumentation
Pressure Rating:
60,000 psi (4136.7 bar)
Application:
In the key markets of petrochemical, chemical, refining, power and other process industries.
