Back to Product: Gems 01750 LS-1750 Series Level Switch
Click Image to Zoom

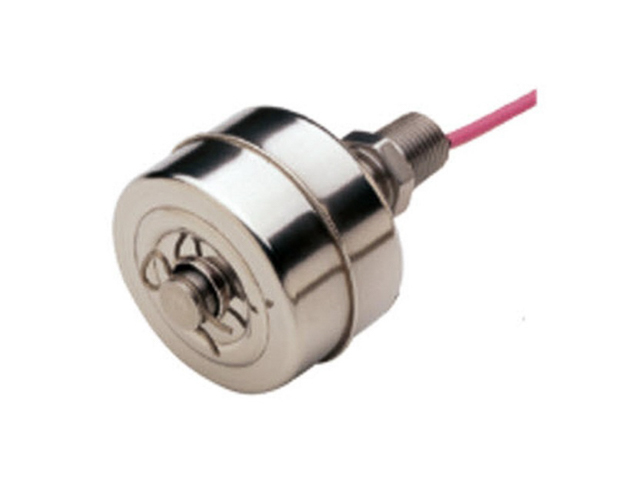

01750 Gems 01750 LS-1750 Series Level Switch01750 Gems 01750 LS-1750 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

01750

Gems 01750 LS-1750 Series Level Switch

Manufacturer Gems Sensors
Part Number 01750
Availability (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $146.08
Qty:
Description:
Gems 01750 LS-1750 Series Level Switch



LS-1750 Series Single-Point Level Switches are ideal for shallow tanks or restricted spaces, or for low-cost, high volume use. Rugged construction suitable for most corrosive liquids, and for high temperatures and pressures. All-stainless steel material of construction complies with FDA food contact regulations.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
316 Stainless Steel
Float Material:
316 Stainless Steel
Mounting Size:
1/8" NPT Male
Switch Type:
SPST (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-1750
Float Diameter:
1 1/2"
Mounting Configuration:
Vertical
Switch Operation:
Normally Open (Reversible)
Electrical Termination:
22 AWG, 24" long Polymeric leads
Size:
Small
Sensor Type:
Float Type
Maximum Temperature:
300° F
Actuation Level:
5/8"
Minimum Liquid SG:
0.7
Minimum Temperature:
-40° F
Wetted Materials:
316 Stainless Steel
Materials of Construction:
Alloy
Maximum pressure:
100 PSI
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CSA Listed, CE
Markets:
Agricultural, Alt Energy, Food & Beverage, General Industry, HVAC/R, OHV & Specialty Vehicle, Power Generation, Semiconductor
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Shallow tanks, restricted spaces, for low-cost, high volume applications

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
