Back to Product: Gems 01811 LS-1800 Series Level Switch
Click Image to Zoom
01811 Gems 01811 LS-1800 Series Level Switch01811 Gems 01811 LS-1800 Series Level Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

01811

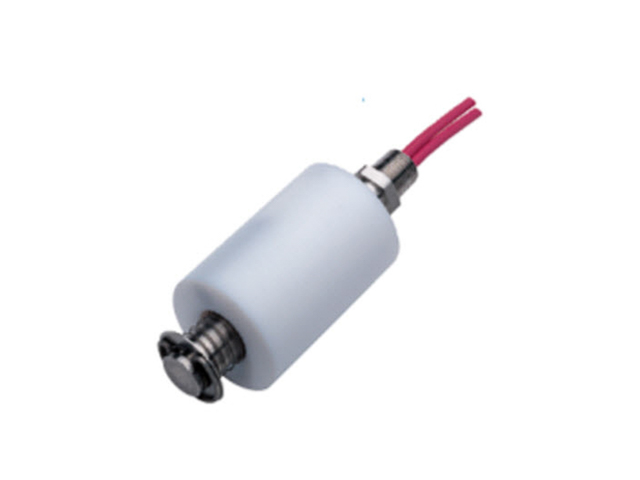

Gems 01811 LS-1800 Series Level Switch

Manufacturer Gems Sensors
Part Number 01811
Availability (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 4-5 weeks.
UOM EA
Price: $209.20
Qty:
Description:
Gems 01811 LS-1800 Series Level Switch



LS-1800 Series Single-Point Level Switches are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1800 Series switch withstands rough service.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Stem Material:
316 Stainless Steel
Float Material:
Teflon
Mounting Size:
1/8" NPT Male
Switch Type:
SPST (20 VA)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
LS-1800
Float Diameter:
1 1/4"
Mounting Configuration:
Vertical
Switch Operation:
Normally Open (Non-Reversible)
Electrical Termination:
18 AWG, 24" long, Polymeric leads
Size:
Large
Maximum Temperature:
250° F
Minimum Liquid SG:
0.65
Wetted Materials:
316 Stainless Steel, Teflon, Hysol
Maximum pressure:
300 PSI
Materials of Construction:
Alloy
Sensor Type:
Float Type
Minimum Temperature:
-40° F
Actuation Level:
7/8"
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, CSA Listed, CE
Markets:
Alt Energy, Food & Beverage, General Industry, HVAC/R, Printing
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Machinery, Printing Equipment, Tanks, Fountains, Green Energy

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 01811

Product Resources
Gems Catalog
Gems Catalog
