Back to Product: Wika 12127681 General Purpose Pressure Transmitter with NEMA 4X Integral Junction Box Model F-20 4-20MA, 2-wire 1/2 NPT Male X Field Case Stainless Steel
Click Image to Zoom
12127681 Wika 12127681 General Purpose Pressure Transmitter with NEMA 4X Integral Junction Box Model F-20 4-20MA, 2-wire 1/2 NPT Male X Field Case Stainless Steel12127681 Wika 12127681 General Purpose Pressure Transmitter with NEMA 4X Integral Junction Box Model F-20 4-20MA, 2-wire 1/2 NPT Male X Field Case Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

12127681

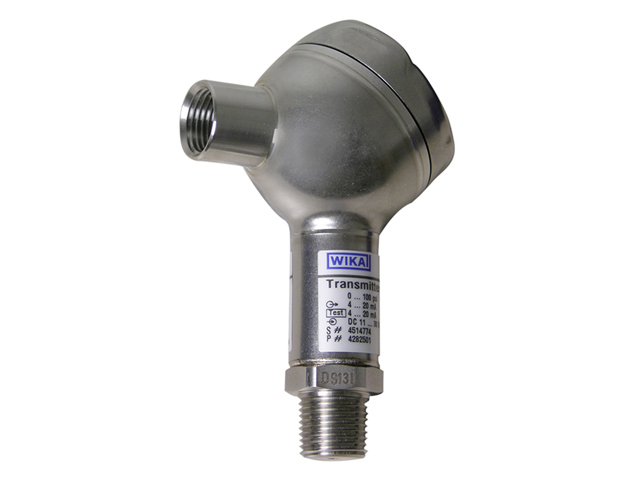

Wika 12127681 General Purpose Pressure Transmitter with NEMA 4X Integral Junction Box Model F-20 4-20MA, 2-wire 1/2 NPT Male X Field Case Stainless Steel

General Purpose Pressure Transmitter

Manufacturer Wika
Part Number 12127681
Availability Out of Stock Call to order
UOM EA
Call for availability
Description:
Wika F-20 model of pressure transmitters are designed for installation in difficult, corrosive environments. The smooth exterior surfaces reduce areas where contaminants may collect and make it ideal for use in the food and pharmaceutical industries where wash-down procedures for cleanliness are required. The all stainless steel case meets NEMA 4X requirements for wash-down and corrosion resistance and ingress protection is available up to IP 67. The model F-20 features an all-welded stainless steel measuring cell for improved media compatibility. There are no internal soft sealing materials that may react with the media or deteriorate over time.
Email this page to a friend

Product Attributes


UOM:
EA
Process Connection:
1/2 NPT Male
Electrical Connection:
Field Case
Range:
2000 PSI
Transmitter Output:
4-20MA, 2-wire
Supply Voltage:
11-30 VDC
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
F-20
Wetted Parts:
Stainless Steel
Accuracy:
±0.5% of span
Non-linearity:
≤ ±0.2 % of span BFSL
Manufacturer:
Wika
Application:
Used in the chemical, food and pharmaceutical industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 12127681

Product Resources
F-20 Model
F-20 Model
