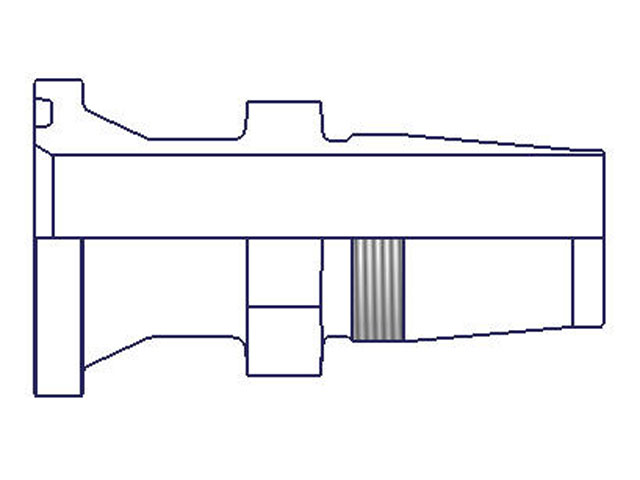

Click Image to Zoom
1520-40-40 20 Series 15201520-40-40 20 Series 1520
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

1520-40-40

20 Series 1520

Parker Field Attachable Nipple SAE Code 61 Flange Head - Straight

Manufacturer Parker
Part Number 1520-40-40
Availability In Stock(4)  In Stock
4 ships in 1-2 days, call for additional quantities
UOM EA
Price: $239.21
Qty:

Description:
20 Series Parker No-Skive Fitting is a field attachable (reusable) style fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short. 20 Series Fittings has zinc dichromate plating and are used on Parker 201-261, 206, 221FR, 225, 235, 266, SS25UL Hoses - the Parker Engine_Airbrake_Marine_Gas Hoses.
Email this page to a friend


Product Attributes


UOM:
EA
Inner Diameter:
2.375 Inch
End 1:
2 1/2 Inch
Material:
Steel
Component Type:
Fittings
Series:
20
Configuration Type:
SAE Code 61 Flange Head - Straight
Inch/Metric:
Inch
Parker Division:
Hose Products
Inner Diameter Inch/mm:
Inch
End 1 Type:
Inch
Coupler/Nipple/Shell:
Nipple
Hose Connection Type:
Field Attachable
Parker Group:
Fluid Connector

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
