Back to Product: 87R-4P Series Oilless Rocking Piston
Click Image to Zoom
1770008 87R-4P Series Oilless Rocking Piston1770008 87R-4P Series Oilless Rocking Piston
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

1770008

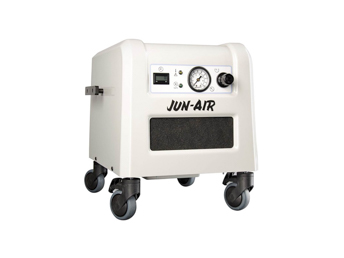

87R-4P Series Oilless Rocking Piston

Jun-Air Oilless Rocking Piston Air Compressor

Manufacturer Jun-Air
Part Number 1770008
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $4,984.63
Qty:
Description:
Features
• 100% oil free
• 100% duty cycle
• Super quiet operation as low as 46 dB(A)
• Pressure up to 120 PSI / 8 bar
• Long-life, 2-year warranty
• 15000+ hours piston seal life
• Plug & play
• 5µm filter with autodrain
• Pressure regulator
• Automatic drain system with evaporation tray
• Hour run meter
• Receiver with internal coating and 5-year warranty
Email this page to a friend

Product Attributes


UOM:
EA
Displacement:
2.5 cfm (77 l/min) 60 Hz
Air flow @ 8 bar / 120 psi (50 Hz):
0.95 cfm (27 l/min)
Air flow @ 8 bar / 120 psi (60 Hz):
1.1 cfm (31 l/min)
Power rating (50 Hz):
0.67 hp (0.5 kw)
Power rating (60 Hz):
0.8 hp (0.6 kw)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
87R-4P Oilless Rocking Piston
System Type:
Cabinet Unit
Country/Region:
North America
Inch/Metric:
Inch
Maximum pressure:
120 psi (8.0 bar)
Voltage:
120V / 50-60 Hz
Tank Size:
1.1 gal (4 litres)
Duty Cycle:
100%
Noise Level:
46 dB(A) 50 Hz, 48 dB(A) 60 Hz
Manufacturer:
Jun-Air
Markets:
Medical, Lab, Industrial
Additional Specifications:
To view full product information see product resources section on this page
