Back to Product: Gems 212465 FT-210 Series TurboFlow Low Flow Turbine Sensor
Click Image to Zoom

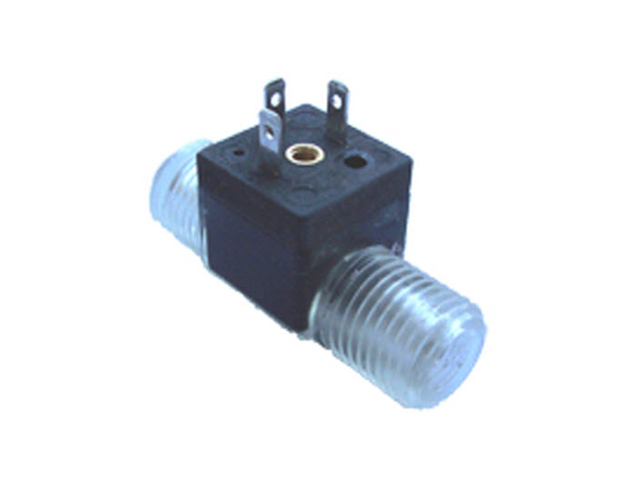

212465 Gems 212465 FT-210 Series TurboFlow Low Flow Turbine Sensor212465 Gems 212465 FT-210 Series TurboFlow Low Flow Turbine Sensor
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

212465

Gems 212465 FT-210 Series TurboFlow Low Flow Turbine Sensor

Electronic Flow Sensors

Manufacturer Gems Sensors
Part Number 212465
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $208.18
Qty:
Description:
Gems 212465 FT-210 Series TurboFlow Low Flow Turbine Sensor



Gems FT-210 features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to on/off dispensing applications. Each sensor is 100% tested, ensuring years of service life.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 5 pieces for this item
Flow Range:
.026 - 0.65 GPM
Port Size:
1/4" NPT Male
Low Flow Accuracy:
±3%
Standard Flow Accuracy:
±3%
Recommended Filtration:
50 micron
Body Material:
Nylon 12
Wetted Materials:
Nylon 12, PTFE (15% Graphite)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Flow Switches & Sensors
Component Sub-Type:
TurboFlow Sensors
Trade Name:
TurboFlow
Series:
FT-210
Electrical Termination:
9.4mm Spacing 3-pin Din Connector (1" high)
Sensor Type:
TurboFlow
Materials of Construction:
Plastic
Maximum Temperature:
212° F
Maximum pressure:
350 PSI
Minimum Temperature:
-4° F
Input:
5 VDC to 24 VDC
Output:
NPN Sinking Open Collector @ 20mA, max.
Manufacturer:
Gems Sensors
Markets:
General Industry, HVAC/R, Marine, Medical, Power Generation, Semiconductor, Water & Wastewater
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Plasma Cutting, Welders, Shipbuilders, Marine Vessels, Waste Water Applications

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 212465

Product Resources
