Back to Product: Gems 226546 ELS-950 Series Level Sensor

Click Image to Zoom

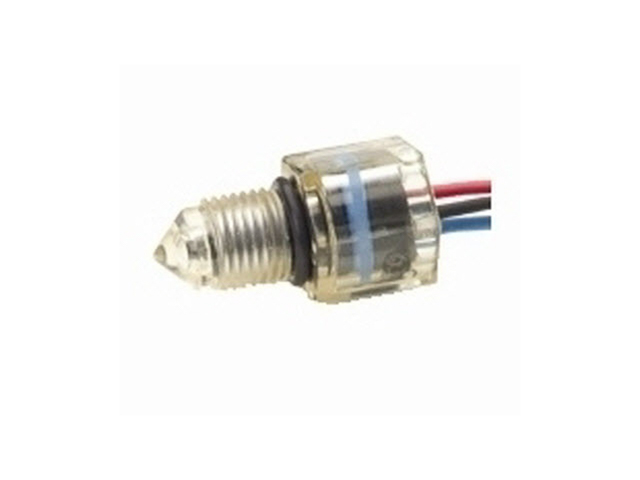

226546 Gems 226546 ELS-950 Series Level Sensor

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

226546

Gems 226546 ELS-950 Series Level Sensor

Manufacturer	Gems Sensors
Part Number	226546
Availability	Out of Stock Discontinued
UOM	EA

Description:

Gems 226546 ELS-950 Series Level Sensor

ELS-950 Series Single-Point Level Switch is a small, no moving parts sensor with a high operating temperature capability up to 230°F (110°C). The ELS-950's design features an over-molded electronics insert, TPE insulated wires, fluorosilicone O-ring seals that create a water-tight, environmentally resistant assembly and polysulfone housing for use in a broad range of medias.

Email this page to a friend

Product Attributes

UOM:

Stem Material:

Polysulfone

Mounting Size:

1/4" NPT Male

Switch Type:

TTL/CMOS Compatible

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Level Sensors & Switches

Component Sub-Type:

Single-Point Level Switches

Series:

ELS-950

Mounting Configuration:

Vertical or Horizontal

Switch Operation:

Normally Closed (Non-Reversible)

Electrical Termination:

22 AWG, TPE Insulated 78" Leads

Maximum pressure:

250 PSI

Maximum Temperature:

230° F

Sensor Type:

Electro-Optic

Wetted Materials:

Polysulfone

Materials of Construction:

Plastic

Minimum Temperature:

-40° F

Output:

Sink 40 ma max, up to 30 VDC

Input:

5 VDC

Manufacturer:

Gems Sensors

Safety/Certifications:

UL Recognized, CE

Markets:

General Industry, Medical, OHV & Specialty Vehicle, Power Generation, Printing

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Coolant reservoir monitoring and warning, Medical diagnostic, sterilizer, washers and dialysis equipment, Low lubricant warning on machine tools, generator sets, on- or off-highway vehicles, Low level warning in hydraulic reservoirs, Plastic over flow bottles, plastic radiators, Leak detection for drip pans

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
