Back to Product: Gems 230500-5-05 FS-600 Series Thermal Dispersion Flow Switch
Click Image to Zoom
230500-5-05 Gems 230500-5-05 FS-600 Series Thermal Dispersion Flow Switch230500-5-05 Gems 230500-5-05 FS-600 Series Thermal Dispersion Flow Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

230500-5-05

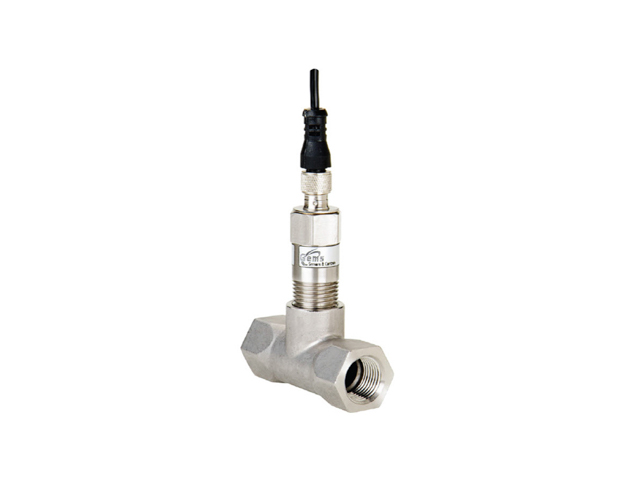

Gems 230500-5-05 FS-600 Series Thermal Dispersion Flow Switch

Manufacturer Gems Sensors
Part Number 230500-5-05
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $551.57
Qty:
Description:
Gems 230500-5-05 FS-600 Series Thermal Dispersion Flow Switch



FS-600 No-Moving Part Series Flow Switch is a solid state sensor that is compatible with both conductive and non-conductive fluids, as well as fluids with particulates or slurries. FS-600 is immune to changes in media viscosity and the straight through switch is designed for a long life and can be mounted in any orientation and can handle a wide range of flow rates.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Flow Range:
5 CM/S
Port Size:
N/A
Switch Type:
SPST (30 VAC @ 45 ma, 42 VDC @ 65 ma)
Electrical Termination:
M12 x 1 (4-Pin) (1meter cable included)
Set Point Accuracy:
± 15%
Body Material:
316 Stainless Steel
Wetted Materials:
316 Stainless Steel, 303 Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Flow Switches & Sensors
Component Sub-Type:
Thermal Dispersion Flow Switches
Series:
FS-600
Minimum Pressure:
300-500 PSI
Maximum pressure:
363 PSI @ 70° F
Minimum Temperature:
-14° F
Maximum Temperature:
140° F
Materials of Construction:
Alloy
Sensor Type:
Thermal Dispersion Type
Set Point Differential (Maximum):
20%
Manufacturer:
Gems Sensors
Safety/Certifications:
CE
Markets:
General Industry, Power Generation, Semiconductor
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Fuel Handling, Semiconductor Cooling, Power Generation Equipment

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 230500505
