232179 Gems 232179 ELS-950M Series Level Sensor232179 Gems 232179 ELS-950M Series Level Sensor
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

232179

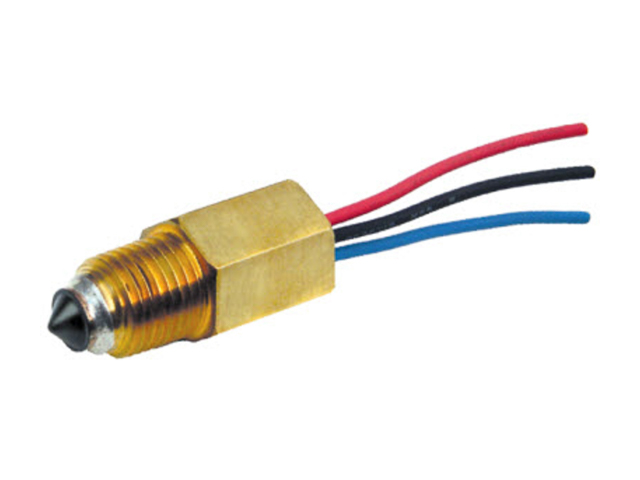

Gems 232179 ELS-950M Series Level Sensor

Manufacturer Gems Sensors
Part Number 232179
Availability Out of Stock Discontinued
UOM EA

Description:
Gems 232179 ELS-950M Series Level Sensor



ELS-950M Series Single-Point Level Switch is ideal for industrial OEMs requiring a solid-state sensor for small space and high temperature environments. The UL approved design features a rugged brass housing, a TPE over-molded electronics insert, TPE insulated wires, and flourocarbon o-ring seals that create a watertight, environmentally resistant assembly, suited for use in harsh environments.

Email this page to a friend


Product Attributes


UOM:
EA
Stem Material:
Brass
Mounting Size:
M12x1-8
Switch Type:
TTL/CMOS Compatible
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Level Sensors & Switches
Component Sub-Type:
Single-Point Level Switches
Series:
ELS-950M
Mounting Configuration:
Vertical or Horizontal
Switch Operation:
Normally Open (Non-Reversible)
Electrical Termination:
22 AWG, TPE Insulated 78" Leads
Maximum Temperature:
230° F
Materials of Construction:
Alloy
Wetted Materials:
Polysulfone, Brass
Maximum pressure:
250 PSI
Sensor Type:
Electro-Optic
Minimum Temperature:
-40° F
Output:
Sink 40 ma max, up to 30 VDC
Input:
5 VDC
Manufacturer:
Gems Sensors
Markets:
General Industry, Medical, OHV & Specialty Vehicle, Power Generation, Printing
Safety/Certifications:
UL Recognized, CE. ROHS
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Coolant reservoir monitoring and warning, Low lubricant warning on machine tools, generator sets, on- or off-highway vehicles, Low level warning in hydraulic reservoirs, Leak detection for drip pans

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
