Back to Product: Gems 26443 FS-400 Series Flow Switch
Click Image to Zoom
26443 Gems 26443 FS-400 Series Flow Switch26443 Gems 26443 FS-400 Series Flow Switch
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

26443

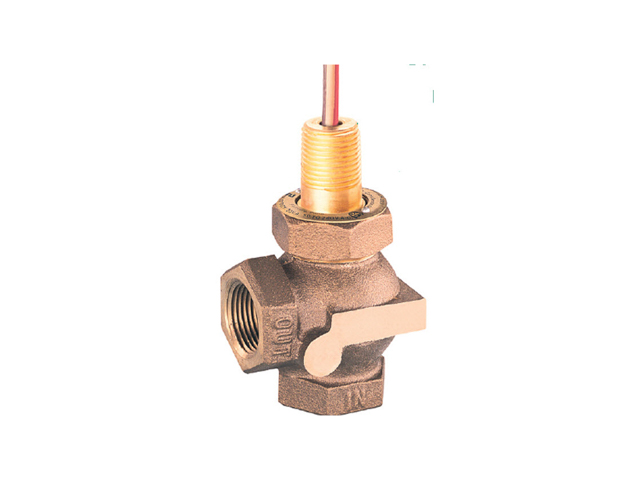

Gems 26443 FS-400 Series Flow Switch

Manufacturer Gems Sensors
Part Number 26443
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities: Call for availability.
UOM EA
Price: $324.86
Qty:
Description:
Gems 26443 FS-400 Series Flow Switch



FS-400 Series Flow Switches provide accurate flow detection in water and oil with 1% repeatability. These switches are ruggedly constructed of non-corrosive materials and resist shock and vibration. Suitable for triggering alarms on interlocking shutdown circuitry when flow rate is improper to protect bearings, gears and cooling systems.
Email this page to a friend

Product Attributes


UOM:
EA
Ordering Note:
Minimum ordering quantity is 1 piece for this item
Flow Range:
2.5 GPM
Port Size:
3/4" NPT Female
Switch Type:
SPDT (20VA)
Electrical Termination:
18 AWG, 24"-26" long Polymeric Leads
Recommended Filtration:
150 micron
Set Point Accuracy:
±10%
Body Material:
Bronze
Wetted Materials:
Bronze, Delrin, 316 Stainless Steel, Viton, Ceramic
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Component Type:
Flow Switches & Sensors
Component Sub-Type:
Shuttle Type Flow Switches
Series:
FS-400
Minimum Temperature:
-20° F
Materials of Construction:
Alloy
Maximum Temperature:
180° F
Set Point Differential (Maximum):
15%
Sensor Type:
Shuttle Type
Minimum Pressure:
300 - 500 PSI
Maximum pressure:
400 PSI @ 70° F
Manufacturer:
Gems Sensors
Safety/Certifications:
UL Recognized, UL Explosion Proof, CE, CSA, FM
Markets:
General Industry, Medical, OHV & Specialty Vehicle
Additional Specifications:
To view full product information see product resources section on this page
Specific Application:
Protect Bearings or Gears (oil separators, fuel systems, pumps, compressors, presses), Electronics or Machinery (heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters), Process Systems (water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators)

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 26443

Product Resources
Gems Catalog
Gems Catalog
