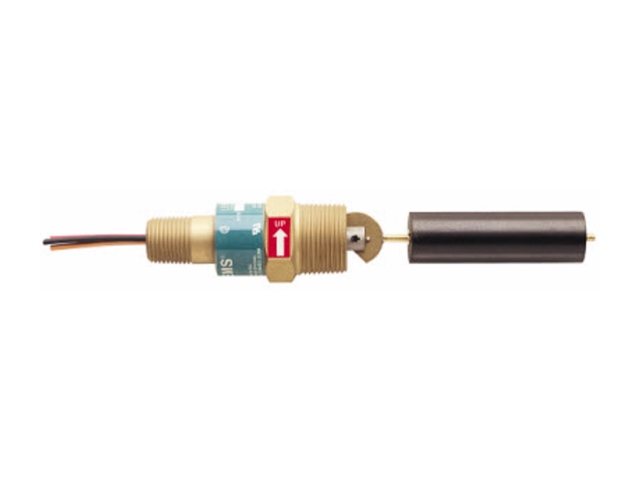

30288 Gems 30288 LS-2050 Series Level Switch

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

30288

Gems 30288 LS-2050 Series Level Switch

Manufacturer	Gems Sensors
Part Number	30288
Availability	Out of Stock (0) Out of Stock - Lead Time Required Out of Stock quantities available in 4-5 weeks.
UOM	EA

Price: $361.03

Qty:

Description:

Gems 30288 LS-2050 Series Level Switch

LS-2050 Series Single-Point Level Switches solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. Installation is through the tank side at the detection point. LS-2050 Series switches are ideal for pressures up to 900 psig (62 bar) and temperatures up to 300°F (149°C).

Email this page to a friend

Product Attributes

UOM:

Ordering Note:

Minimum ordering quantity is 1 piece for this item

Stem Material:

Brass

Float Material:

Buna

Mounting Size:

1" NPT Male

Switch Type:

SPDT (20 VA)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Component Type:

Level Sensors & Switches

Component Sub-Type:

Single-Point Level Switches

Series:

LS-2050

Float Diameter:

.9"

Mounting Configuration:

Horizontal

Switch Operation:

Selectable

Electrical Termination:

18 AWG, 24" long, Polymeric leads

Size:

Large

Maximum Temperature:

250° F

Wetted Materials:

Brass, Buns N, 316 Stainless Steel, Berylium Copper, Telon, Ceramic

Maximum pressure:

150 PSI

Minimum Temperature:

-40° F

Sensor Type:

Float Type

Materials of Construction:

Alloy

Actuation Level:

5/8"

Minimum Liquid SG:

0.8

Manufacturer:

Gems Sensors

Safety/Certifications:

UL Recognized, CSA Listed, CE

Markets:

Alt Energy, General Industry, Marine, Oil & Gas, Power Generation, Process, Process Tank Gauging, Water & Wastewater

Additional Specifications:

To view full product information see product resources section on this page

Specific Application:

Machine Tools, Shipbuilders, Process Tanks, Extraction & Distribution Equipment, Marine Vessels, Power Generating Facilities

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

30288
