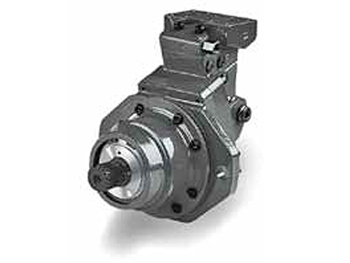

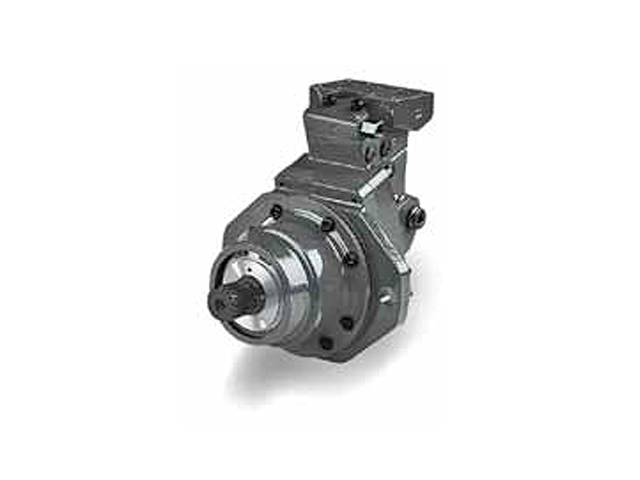

3799007 T12 Dual Displacement Parker VOAC Bent-Axis Motor

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

3799007

T12 Dual Displacement Parker VOAC Bent-Axis Motor

Parker T12 Series Dual Displacement Bent-Axis Motor

Manufacturer	Parker
Part Number	3799007
Availability	Out of Stock Call to order
UOM	EA

Call for availability

Description:

Parker's T12 Series, a two-displacement motor is tailor-made for truck drives. It allows a high ratio between high and low speed and installs as easily as a fixed displacement motor. The specially designed end cap with dual side ports permits a very short installation.

Email this page to a friend

Product Attributes

UOM:

Displacement:

60 cc/rev

Function:

Motor, bi-directional

Model Number:

T12-060-MT-CV-C-000-A-0-060/02

Shaft Seal:

Fluorocarbon rubber high temperature

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Series:

T12

Inch/Metric:

Inch

Parker Division:

Hydraulic Pump

Options:

None

Shaft:

DIN splined

Port Threads:

Metric Threads

Outlet Pressure:

6,000 psi (420 bar)

Mounting Flange:

Cartridge flange

Control:

N/A

Rated Speed:

5600 rpm

Flow @ Rated RPM:

57 gpm (215.8 lpm)

Parker Group:

Hydraulic

Application:

Feller bunchers, skidders, forwarders, dozers,and excavators.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

T12060MTCVC000A0060/02
