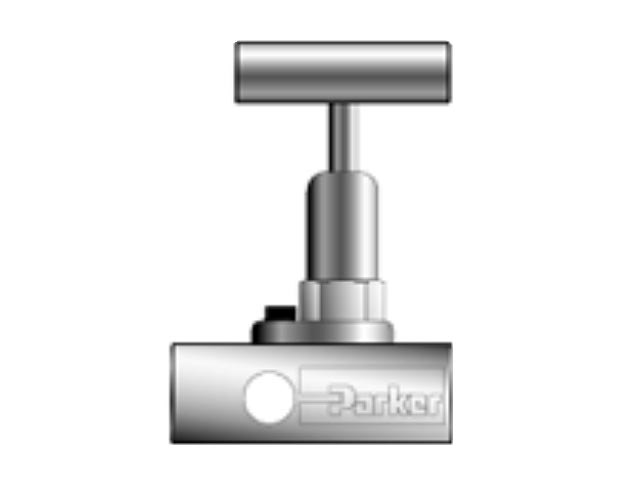

4F-PVG4PK-EPR-SS Rising Stem Plug Valve - Gauge Ports - PVG4

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

4F-PVG4PK-EPR-SS

Rising Stem Plug Valve - Gauge Ports - PVG4

Parker Rising Stem Plug Valve - Gauge Ports - PVG4 Series

Manufacturer	Parker
Part Number	4F-PVG4PK-EPR-SS
Availability	Out of Stock Discontinued
UOM	EA

Description:

Parker PVG Rising Plug Valves are available with gauge ports, and variety of seat and seal materials. They are screwed bonnet designs featuring bonnet lock plates. The PVG series of valves provide a straight-through flow path in two orifice sizes. The valves utilize a non-wetted upper stem and a non-rotating lower stem in conjunction with a tapered seat for positive shut-off and long seat life, even in particulated media.

Email this page to a friend

Product Attributes

UOM:

Inlet port 1:

1/4" female NPT

Outlet port 2:

1/4" female NPT

Material - Seats:

PEEK

Stem Seal:

Ethylene propylene rubber

Material:

Stainless Steel

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Valve Type:

Stem plug valve

Series:

PVG4

Configuration Type:

Plug valve

Inch/Metric:

Inch

Connection Type:

Female NPT

CV Factor:

0.95

Orifice size:

0.188 Inch (4.8mm)

Parker Division:

Instrumentation Products

Parker Group:

Instrumentation

Pressure Rating:

6,000 psig (414 bar) CWP

Operating Temperature:

-20 F to 400 F (-29 C to 204 C)

Handle Type:

Stainless steel t-bar

Gauge ports:

1/4" ports

Application:

In the key markets of chemical & refining, food, beverage & dairy, medical & dental, microelectronics, oil & gas, and power generation.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

N/A
