Back to Product: Wika 52376800 General Purpose Pressure Transmitter Model S-20 4-20MA 2-wire 1/4 NPT Male X MDIN Stainless Steel
Click Image to Zoom
52376800 Wika 52376800 General Purpose Pressure Transmitter Model S-20 4-20MA 2-wire 1/4 NPT Male X MDIN Stainless Steel52376800 Wika 52376800 General Purpose Pressure Transmitter Model S-20 4-20MA 2-wire 1/4 NPT Male X MDIN Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

52376800

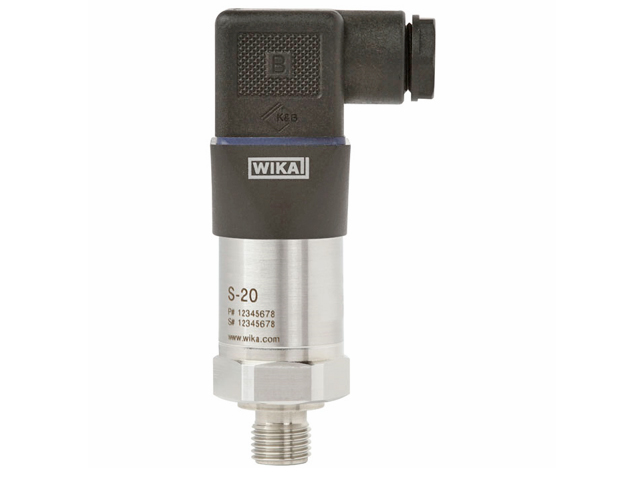

Wika 52376800 General Purpose Pressure Transmitter Model S-20 4-20MA 2-wire 1/4 NPT Male X MDIN Stainless Steel

General Purpose Pressure Transmitter

Manufacturer Wika
Part Number 52376800
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 5-6 weeks.
UOM EA
Price: $384.54
Qty:
Description:
Wika Model S-20 pressure transmitter for general industrial applications is the ideal solution for customers with demanding measuring requirements. It features a very good accuracy, a robust design and an exceptional number of variants, meaning it can be suited to the widest range of applications.
Email this page to a friend

Product Attributes


UOM:
EA
Process Connection:
1/4 NPT Male
Electrical Connection:
MDIN
Range:
5000 PSI
Transmitter Output:
4-20MA, 2-wire
Supply Voltage:
8-35 VDC
Material:
Stainless Steel
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
S-20
Accuracy:
±0.5% of span
Wetted Parts:
Stainless Steel
Non-linearity:
±0.25% of span BFSL
Manufacturer:
Wika
Application:
Critical industrial, demanding applications in research and development, harsh environments in the process industry.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 52376800

Product Resources
S-20 Model
S-20 Model
