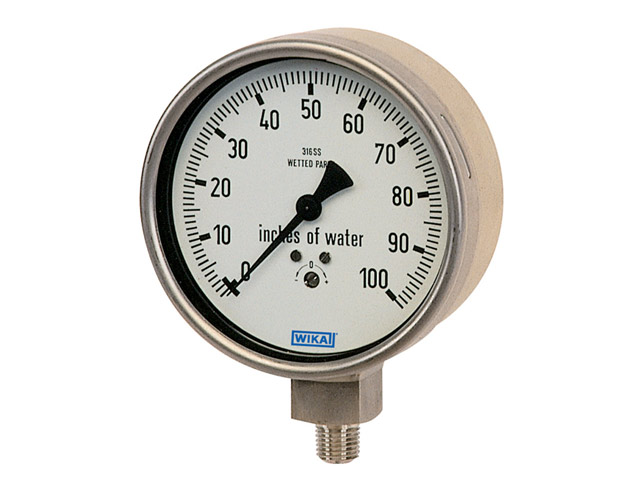

Back to Product: Wika 52739788 Low Pressure Process Gauge Model 632.50 4 Inch Dial 5 PSI 1/4 NPT Center Back Mount Rear Flange Stainless Steel Case
Click Image to Zoom
52739788 Wika 52739788 Low Pressure Process Gauge Model 632.50 4 Inch Dial 5 PSI 1/4 NPT Center Back Mount Rear Flange Stainless Steel Case52739788 Wika 52739788 Low Pressure Process Gauge Model 632.50 4 Inch Dial 5 PSI 1/4 NPT Center Back Mount Rear Flange Stainless Steel Case
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

52739788

Wika 52739788 Low Pressure Process Gauge Model 632.50 4 Inch Dial 5 PSI 1/4 NPT Center Back Mount Rear Flange Stainless Steel Case

Low Pressure Process Gauge

Manufacturer Wika
Part Number 52739788
Availability Out of Stock Call to order
UOM EA
Call for availability
Description:
Wika Model 632.50 low pressure gauges offer the corrosion resistance of 316 SS wetted parts and is able to measure pressure and vacuum of gaseous media from as low as 1” H2O to 275” H2O (10 psi). The finely polished nickel-silver pinion gear and shaft of the movement ensure repeatable accuracy.
Email this page to a friend

Product Attributes


UOM:
EA
Dial Size:
2-1/2
Connection Size:
1/4 NPT
Connection Location:
Center Back Mount Rear Flange
Case Material:
304 Stainless steel
Gauge Fill:
Dry
Gauge Pressure Range:
5 PSI
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
632.50
Dial Material:
White aluminum
Wetted Parts:
316L Stainless Steel Movement
Window:
Safety glass
Window Ring:
Stainless Steel, bayonet
Accuracy:
±1.5% of span
Pointer Material:
Black aluminum
Manufacturer:
Wika
Application:
Robust design and weather protection, suitable for outdoor use. Suitable for dry, gaseous media that will not attack 316 stainless steel parts.
Specific Application:
Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 52739788

Product Resources
632.50 Series
632.50 Series
