Back to Product: Wika 8986135 Model L990.TA.N2FXN2F.SS.SS-0.SS.2500 All Welded Mini Diaphragm Seal 2500 PSI 1/4 NPTF Stainless Steel

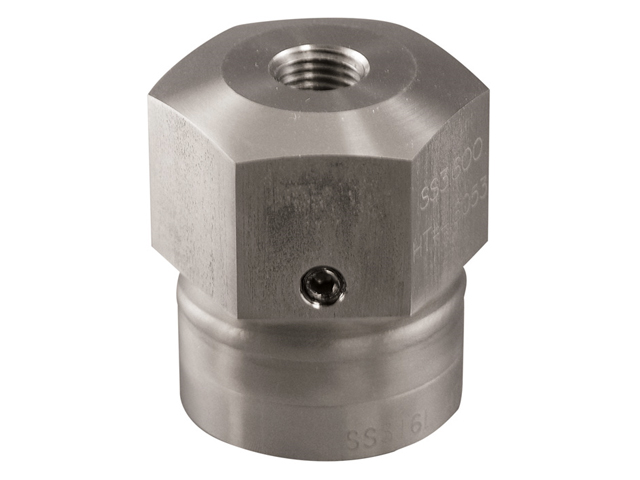

Click Image to Zoom
8986135 Wika 8986135 Model L990.TA.N2FXN2F.SS.SS-0.SS.2500 All Welded Mini Diaphragm Seal 2500 PSI 1/4 NPTF Stainless Steel8986135 Wika 8986135 Model L990.TA.N2FXN2F.SS.SS-0.SS.2500 All Welded Mini Diaphragm Seal 2500 PSI 1/4 NPTF Stainless Steel
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

8986135

Wika 8986135 Model L990.TA.N2FXN2F.SS.SS-0.SS.2500 All Welded Mini Diaphragm Seal 2500 PSI 1/4 NPTF Stainless Steel

All Welded Mini Diaphragm Seal

Manufacturer Wika
Part Number 8986135
Availability Out of Stock Discontinued
UOM EA
Description:
Wika model L990.TA diaphragm seals are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, environmentally hazardous or toxic media. A diaphragm made of the appropriate material provides for the separation from the medium to be measured. Thus even the most difficult measuring requirements can be met by combining measuring instruments with diaphragm seals.
Email this page to a friend

Product Attributes


UOM:
EA
Diaphragm Material:
316L Stainless steel
Instrument Connection:
1/4 NPTF
Process Connection:
1/4 NPTF
Gauge Pressure Range:
2500 PSI
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
L990.TA
Upper Housing:
316L Stainless steel
Lower Housing:
316L Stainless steel
Flushing Connection:
Without
Diaphragm material:
316L Stainless steel
Manufacturer:
Wika
Application:
Process industry diaphragm seal to combine with Bourdon tube pressure gauges. Intended for corrosive, contaminated, hot orviscous pressure media.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: 8986135

Product Resources
L990.TA Series
L990.TA Series
