Back to Product: Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 Series
Click Image to Zoom

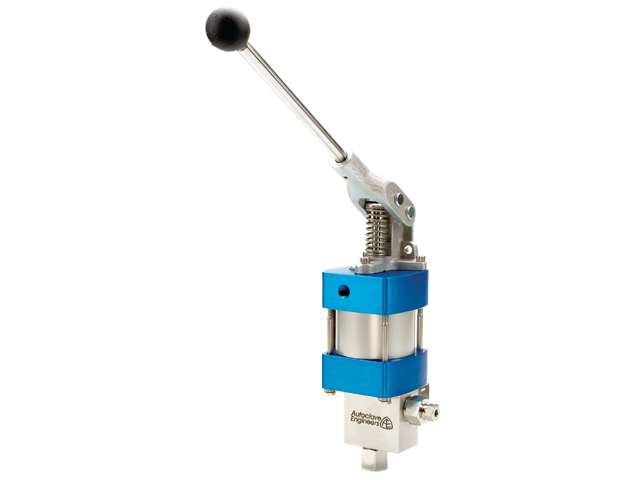

ACHL189-01SNU Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 SeriesACHL189-01SNU Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

ACHL189-01SNU

Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 Series

Parker Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 Series

Manufacturer Parker
Part Number ACHL189-01SNU
Availability Out of Stock Discontinued
UOM EA
Description:
Parker Autoclave Engineers 3" Compact, Air-Driven, High Pressure Liquid Pump with Hand Lever - ACHL189-01 Series
Email this page to a friend

Product Attributes


UOM:
EA
Liquid Inlet Connection:
3/8" FNPT
Liquid Outlet Connection:
F250C
Liquid Inlet Location:
Side
Isolation Chamber:
None
Liquid Seal Material:
Urethane u-cup
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
ACHL189-01
Pump Type:
Liquid Pump
Inch/Metric:
Inch
Material:
Stainless Steel
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Ratio:
1:213
Volume Displacement per Cycle:
0.035 in³ (.57 cm³)
Air Drive type:
Single acting, single piston
Air Piston Diameter:
3 Inch
Main Air Drive Supply Connection:
1/4" FNPT
Air Drive Seals:
Buna-N
Maximum Operating Temperature:
0 F to 140 F (-18 C to 60 C)
Maximum Outlet Pressure:
31,900 psi (2,200 bar)
Application:
In the key markets of oil and gas, chemical, industrial and research industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: ACHL18901SNU

Product Resources
Parker Autoclave Engineers High Pressure Liquid Pumps
Parker Autoclave Engineers High Pressure Liquid Pumps
Parker Autoclave Engineers Operation and Maintenance Manual ACHL
Parker Autoclave Engineers Operation and Maintenance Manual ACHL
