Back to Product: Racor AFAP Series Heavy-Duty Engine Air Pre-Cleaner for Off-Highway and Stationary
Click Image to Zoom
AFAP400 Racor AFAP Series Heavy-Duty Engine Air Pre-Cleaner for Off-Highway and StationaryAFAP400 Racor AFAP Series Heavy-Duty Engine Air Pre-Cleaner for Off-Highway and Stationary
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

AFAP400

Racor AFAP Series Heavy-Duty Engine Air Pre-Cleaner for Off-Highway and Stationary

Manufacturer Parker
Part Number AFAP400
Availability Out of Stock Call to order
UOM EA
Call for availability
Description:

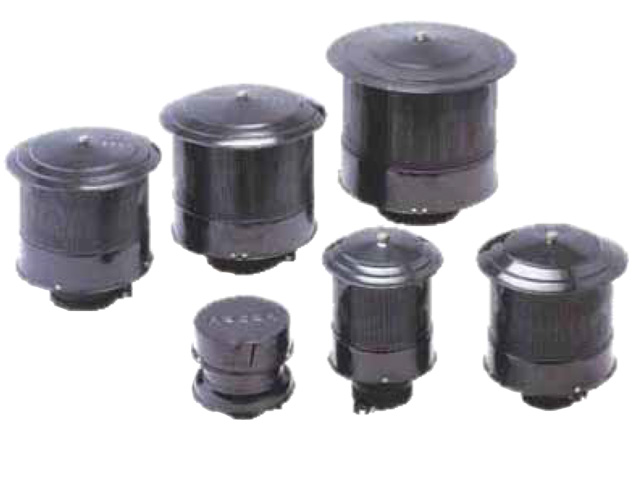

Parker Racor AFAP Series Heavy-Duty Engine Air Pre-Cleaner consist of a steel housing with static vanes and a rust-proof rotor mounted on dual ball bearings over double welded plate steel. The perforated metal pre-screen at the inlet is standard. The outlet tube can be adapted with the supplied reducing sleeves for a variety of outlet choices. Racor Engine Air Pre-cleaners are powder coated for a durable, corrosion resistant finish. Air flows range from 53 to 1059 cfm (1.5 to 30.0 m3/min). Applications for both gasoline and diesel engines.
Email this page to a friend

Product Attributes


UOM:
EA
Maximum Flow:
776-1,059 cfm (22.0-30.0 m3/min)
HP Range:
300-400 hp (224-298 kw)
Height:
18.1 Inch (46.0 cm)
Outlet:
6.0-5.5-5.3-5.0 Inch (15.2-14.0-13.5-12.7 cm)
Diameter:
16.7 Inch (42.4 cm)
Weight:
16.5 lbs (7.5 kg)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
AFAP
Configuration Type:
Pre-Cleaner
Inch/Metric:
Inch
Parker Group:
Filtration
Parker Division:
Racor
Application:
Slow moving and industrial equipment such as agricultural machinery, earth moving, construction, mining equipment, pumping plants, generator sets, material handling equipment, snow removal equipment, and street sweepers.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: AFAP400

Product Resources
Racor AFAP Series
Racor AFAP Series
