Back to Product: Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 Series
Click Image to Zoom

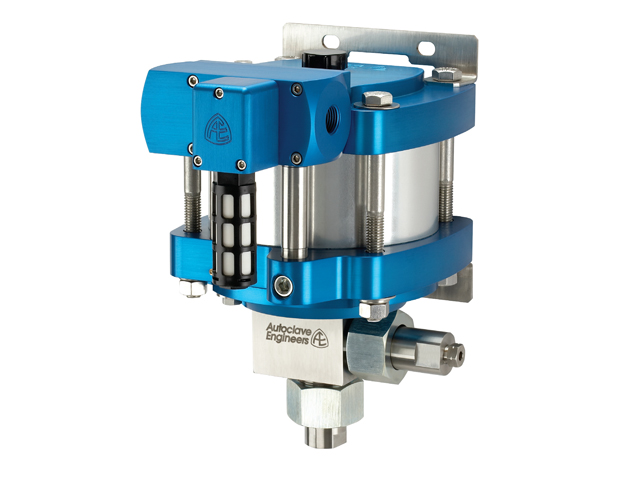

ASL250-01SCU Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 SeriesASL250-01SCU Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

ASL250-01SCU

Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 Series

Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 Series

Manufacturer Parker
Part Number ASL250-01SCU
Availability Out of Stock Discontinued
UOM EA
Description:
Parker Autoclave Engineers 6" Standard, Air-Driven, High Pressure Liquid Pump - ASL250-01 Series
Email this page to a friend

Product Attributes


UOM:
EA
Liquid Inlet Connection:
1/2" FNPT
Liquid Outlet Connection:
F250C
Liquid Inlet Location:
Side
Isolation Chamber:
Included
Liquid Seal Material:
Urethane u-cup
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
ASL250-01
Pump Type:
Liquid Pump
Inch/Metric:
Inch
Material:
Stainless Steel
Parker Group:
Instrumentation
Parker Division:
Autoclave Engineers
Pressure Ratio:
1:265
Maximum Outlet Pressure:
38,400 psi (2,648 bar)
Volume Displacement per Cycle:
0.22 in³ (3.6 cm³)
Air Drive type:
Single acting, single piston
Air Drive Seals:
Buna-N
Maximum Operating Temperature:
0 F to 140 F (-18 C to 60 C)
Air Piston Diameter:
6 Inch
Main Air Drive Supply Connection:
1/2" FNPT
Application:
In the key markets of oil and gas, chemical, industrial and research industries.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags: ASL25001SCU

Product Resources
Parker Autoclave Engineers High Pressure Liquid Pumps
Parker Autoclave Engineers High Pressure Liquid Pumps
Parker Autoclave Engineers Operation and Maintenance Manual ASL
Parker Autoclave Engineers Operation and Maintenance Manual ASL
