Click Image to Zoom
AT05-101-G215DX AT SeriesAT05-101-G215DX AT Series
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

AT05-101-G215DX

AT Series

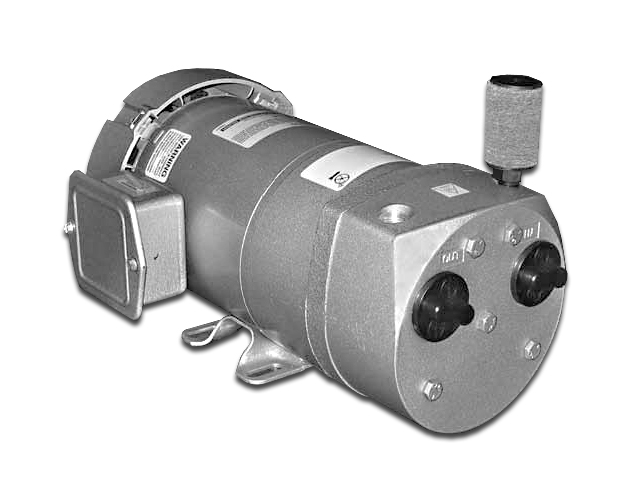

Gast Motor Mounted Rotary Vane

Manufacturer Gast
Part Number AT05-101-G215DX
Availability Out of Stock (0) Out of Stock - Lead Time Required
Out of Stock quantities available in 2-3 weeks.
UOM EA
Price: $1,067.63
Qty:

Description:
Features - Oilless operation, motor mountedm new motor design, totally enclosed fan cooled (TEFC) motor offers better protection against environmental conditions, improved mounting stability.
Email this page to a friend


Product Attributes


UOM:
EA
Horsepower:
1/4 hp (0.19 kw)
Motor:
115/60-1
Weight:
29.5 lbs (13.4 kg)
Country of Origin (COO):
Special request, please call for COO
Harmonized Tariff (HTS):
Special request, please call for HTS
Series:
AT
Inch/Metric:
Inch
Maximum pressure:
10 psi (continuous) ; 15 psi (intermittent)
Free Air Flow @ 60 Hz:
4.8 cfm
Rated Amps:
4.7 amps
Operation Type:
oilless
Motor Mounted:
yes
Thermal Protector:
yes
RPM (60 Cycle):
1725 rpm
Power Rating @60 Hz:
1/4 hp (0.19 kw)
Manufacturer:
Gast
Application:
Environmental Applications-air sampling, sewage aeration. Medical Applications-medical aspiration. Graphic Arts Applications-collating inserters. Other Applications-pond aeration, vacuum forming, air bearings, food processing.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: AT05101G215DX

Product Resources
Updating...
