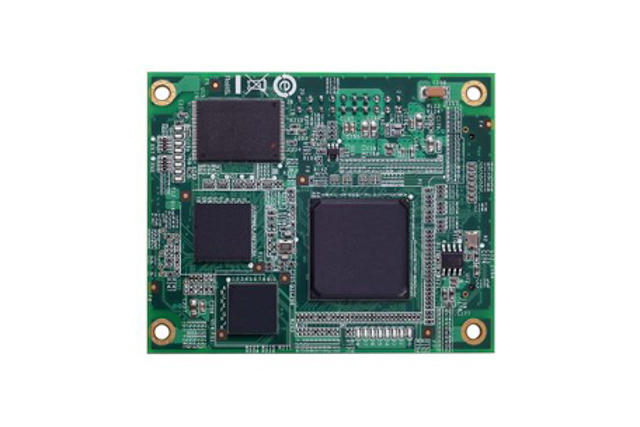

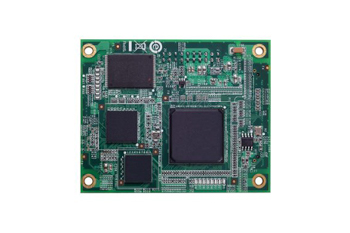

EOM-G103-PHR-PTP

The EOM-G103 Series is designed for device manufacturers that want to embed and integrate the advanced IEC 62439-3 supported modules with minimum effort. IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) are the standardized redundancy protocols where zero recovery time is needed.

The EOM-G103 Series is compliant with the IEC 62439-3 standard and provides an easy and cost-effective integrated solution for adding a redundancy module to a non-IEC 62439-3 compliant product. The modules support two IEC 62439-3 Ethernet ports for constructing PRP or HSR networks: SGMII (MAC mode)/SerDes (1000BaseX). It also includes one standard Ethernet port SGMII (MAC mode)/SerDes (1000BaseX) for connecting with standard IEEE 802.3 Ethernet devices. Additionally, the EOM-G103-PHR-PTP Series provides an extra SGMII (MAC mode)/SerDes (1000BaseX) for building up a local access Ethernet console port to easily maintain, control, and manage devices at the local site.
