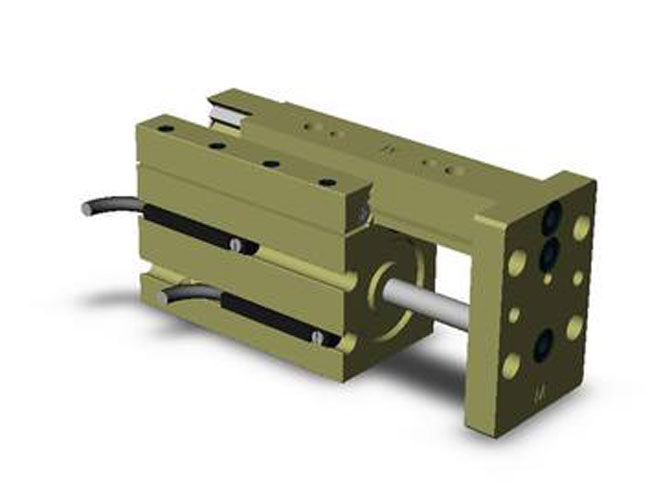

MPS-1-1 Destaco Robohand MPS-1-1 Miniature Rail Thruster Slide

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

MPS-1-1

Destaco Robohand MPS-1-1 Miniature Rail Thruster Slide

Manufacturer	Destaco
Part Number	MPS-1-1
Availability	(0) Out of Stock - Lead Time Required Out of Stock quantities available in 5-6 weeks.
UOM	EA

Price: $564.63

Qty:

Description:

Destaco Robohand MPS-1-1 Miniature Rail Thruster Slide

• Compact high reliability bearing design
• Excellent part position repeatability
• Zero side play with patented preloaded
“Dual-V” roller bearings
• Adjustable extend/retract hard stops
• Two Position sensing with hall effect sensors

Email this page to a friend

Product Attributes

UOM:

Stroke Length (In):

0.5

Bore:

0.438

Thrust Force (lbsf):

Weight:

0.18 lbs

Country of Origin (COO):

United States - Required COO must be noted at time of order

Harmonized Tariff (HTS):

8412.31.0080

Component Type:

Thrusters / Slides

Component Sub-Type:

Ball Rail Slides

Product Function:

Linear Positioning

Series:

MPS

Payload:

0.3

Imperial or Metric Product:

Metric Version

Actuation (Open/Closed) (Sec):

0.1

Direct Connect:

Yes

Temp Range Standard:

-35° to 80°C (-30° to 180°F)

Temp Range Viton:

-30° to 120°C (-20° to 250°F)

Manufacturer:

Destaco

Markets:

Industrial, Transportation, Food & Packaging, Consumer Goods, Logistics, and Life Sciences

Additional Specifications:

To view a full product information see product resources section on this page

Specific Application:

Precision applications, small parts handling, and OEM packaging machines.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Part Number Tags:

MPS11
