PT-7828-F-24-HV Moxa PT-7828-F-24-HV IEC 61850-3 / EN 50155 24+4G-port Layer 3 Gigabit modular managed rackmount Ethernet switchesPT-7828-F-24-HV Moxa PT-7828-F-24-HV IEC 61850-3 / EN 50155 24+4G-port Layer 3 Gigabit modular managed rackmount Ethernet switches
*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

PT-7828-F-24-HV

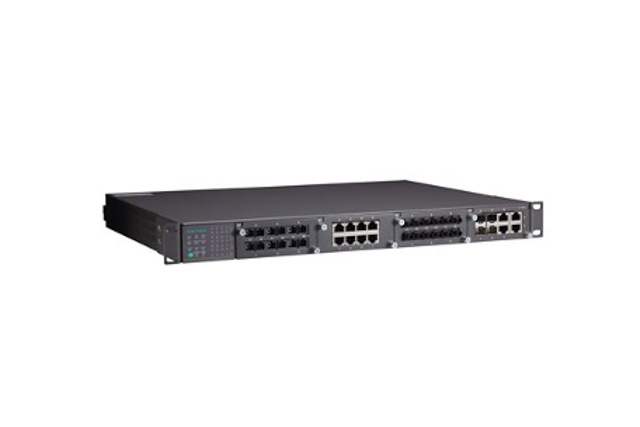

Moxa PT-7828-F-24-HV IEC 61850-3 / EN 50155 24+4G-port Layer 3 Gigabit modular managed rackmount Ethernet switches

Manufacturer Moxa
Part Number PT-7828-F-24-HV
Availability Out of Stock(0)  Lead Time Required
Call for availability
UOM EA
Price: $3286.15
Qty:

Description:
IEC 61850-3 Layer 3 modular managed rackmount Ethernet switch system with 3 slots for Fast Ethernet modules and 1 slot for Gigabit Ethernet modules, for a total of up to 24+4G ports, cabling on front panel, 2 isolated power supplies (24 VDC and 88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

The PT-7828 switches are high-performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4). The PT-7828 Series also features critical packet prioritization (GOOSE, SMVs, and PTP).

The PT-7828’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the PT-7828 makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Optional front or rear wiring makes the PT-7828 switches suitable for a variety of applications.

Email this page to a friend


Product Attributes


UOM:
EA
Additional Specifications:
To view a full product datasheet see product resources section on this page
Component Type:
Layer 3 Managed Switches
Series:
PT-7828
Manufacturer:
Moxa

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.


Part Number Tags: PT7828F24HV
