R9S3300M R9S Series

*ACTUAL PRODUCT MAY DIFFER FROM IMAGE SHOWN. IT IS BUYERS RESPONSIBILITY TO VERIFY ACTUAL PRODUCT SPECIFICATION MEETS INTENDED REQUIREMENTS BY REVIEWING ITEM SPECIFICATIONS AND RELATED DOCUMENTATION LISTED BELOW.

R9S3300M

R9S Series

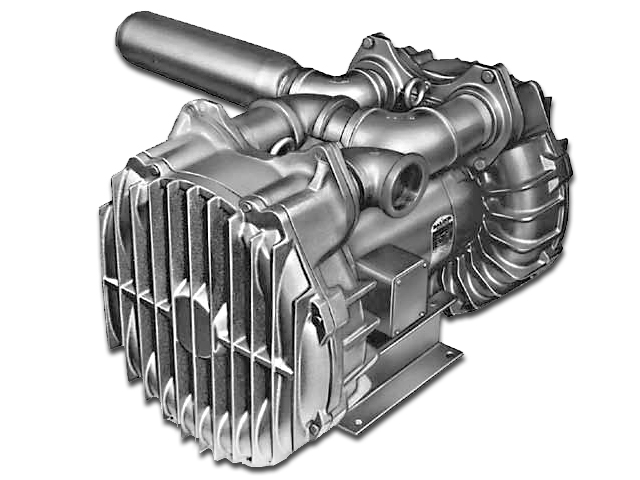

Gast Regenair® Regenerative Blower

Manufacturer	Gast
Part Number	R9S3300M
Availability	Discontinued
UOM	EA

Description:

Features - Rugged construction, low maintenance, oilless operation, UL and CSA approved motor with permanently sealed ball bearings, cast iron housing, cover and muffler enclosure, cast aluminum impeller, external muffler for additional silencing. Smaller and less costly than two motor-mounted units.

Email this page to a friend

Product Attributes

UOM:

Amps (60/50 Hz):

98/49 / 82-47/41-39

Power rating (60/50 Hz):

30 hp (22.3 kw) / 19 hp (14.1 kw)

Weight:

606 lbs (275 kg)

Country of Origin (COO):

Special request, please call for COO

Harmonized Tariff (HTS):

Special request, please call for HTS

Trade Name:

Regenair®

Series:

R9S

Inch/Metric:

Inch

Maximum pressure:

222 InH2O (60 Hz) 208 InH2O (50 Hz)

Maximum Vacuum:

149 InH2O (60 Hz) 142 InH2O (50 Hz)

Maximum air flow:

660 cfm (60 Hz) 585 cfm (50 Hz)

Starting Amps (60/50 Hz):

320 @ 460V / 308 @ 440V

Insulation Class:

Motor enclosure:

ODP

Voltage (60/50 Hz):

230/460-3 / 190-220/380-440-3

Recommended NEMA Starter Size:

3/3

Manufacturer:

Gast

Application:

Air tables, solution and media agitation, vacuum hold-down and pickup, air blow-off, soil and ground water remediation, carton forming and packaging, lab filtration, sewage aeration, materials handling, aquaculture, pneumatic conveying.

Safety Notice

WARNING: Products containing brass have a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Accessories

	Part #	Availability
+	AE134	In Stock
+	AG258F	Out of Stock - Lead Time Required
+	AJ121G	Out of Stock - Lead Time Required
+	AJ121H	Out of Stock - Lead Time Required
+	AJ126M	Out of Stock - Lead Time Required
+	AJ151M	Out of Stock - Lead Time Required
+	AJ497	In Stock

UOM	Accessory type	Used with	Country of Origin (COO)	Harmonized Tariff (HTS)
EA	Vacuum Gauge	R4P, R6PP, R6PS, R6P, R4M, R6, R7, R7S, R7P, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Relief Valve	R6PP, R7P, R7S, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Muffler	R7, R7P, R7S	Special request, please call for COO	Special request, please call for HTS
EA	Muffler	R6PP (exhaust), R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Inlet Pressure Filter	R9S, R9P	Special request, please call for COO	Special request, please call for HTS
EA	Inline Vacuum Filter	R7P, R7S, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS
EA	Vacuum Gauge	R1, R2, R3, R4, R4H, R4P, R5, R7, R7P, R7S, R9, R9P, R9S	Special request, please call for COO	Special request, please call for HTS

AE134

In Stock

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Vacuum Gauge

R4P, R6PP, R6PS, R6P, R4M, R6, R7, R7S, R7P, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AG258F

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Relief Valve

R6PP, R7P, R7S, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AJ121G

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Muffler

R7, R7P, R7S

Special request, please call for COO

Special request, please call for HTS

AJ121H

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Muffler

R6PP (exhaust), R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AJ126M

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inlet Pressure Filter

R9S, R9P

Special request, please call for COO

Special request, please call for HTS

AJ151M

Out of Stock - Lead Time Required

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Inline Vacuum Filter

R7P, R7S, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS

AJ497

In Stock

View

UOM:

Accessory type:

Used with:

Country of Origin (COO):

Harmonized Tariff (HTS):

Vacuum Gauge

R1, R2, R3, R4, R4H, R4P, R5, R7, R7P, R7S, R9, R9P, R9S

Special request, please call for COO

Special request, please call for HTS
